ANNKE 16-Channel 12MP PoE CCTV Kit, Smart Person and Vehicle Detection, 8 x 12MP Waterproof PoE Outdoor IP Camera, 24/7 Recording, Color Night Vision 1TB

Name: ANNKE 16-Channel 12MP PoE CCTV Kit, Smart Person and Vehicle Detection, 8 x 12MP Waterproof PoE Outdoor IP Camera, 24/7 Recording, Color Night Vision 1TB
Brand: ANNKE
SKU: AE-N46PCK1-98DD
Price: 1064.99 GBP
Availability: InStock

~~£3,374.97~~

Sold by ANNKE Security kit

Product information

Description

General description

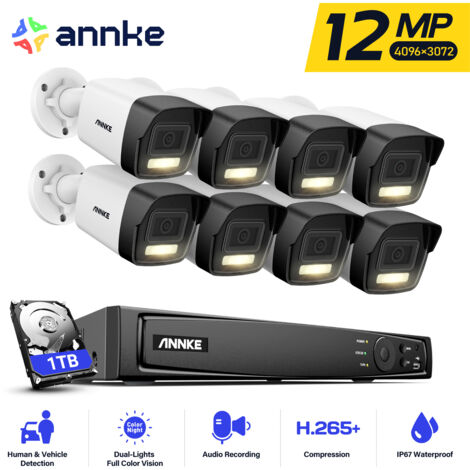

The ANNKE 16-Channel 12MP PoE CCTV Kit is a comprehensive security solution designed for both indoor and outdoor use. It includes 8 high-definition 12MP waterproof PoE outdoor IP cameras, providing 24/7 recording capabilities and advanced features such as smart person and vehicle detection. With color night vision and a robust NVR, this kit ensures that you can monitor your property with clarity and precision.

Technical specifications

Camera Sensor: 1/2.7" Progressive Scan CMOS

Max Resolution: 4096 x 3072 (12MP)

Main Stream: 50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720); 60 Hz: 10 fps@4096*3072, 15 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)

Substream: 50 Hz: 12.5 fps (1280*720, 640*480, 640*360); 60 Hz: 15 fps (1280*720, 640*480, 640*360)

Video Compression: H.265+/H.265/H.264+/H.264

Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Lens: 2.8 mm

Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Angle of View: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

Supplement Light Range: Up to 30 m

Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

Operating Temperature: -22 °F – 140 °F / -30 °C – 60 °C

Dimensions (L X W X H): 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Weight: 0.6 lb. / 285 g

NVR Max Recording Resolution: Up to 12MP (4096 X 3072)@30fps

NVR Dimensions (W X H X D): 15.2” X 12.4” X 2.0” / 385 X 315 X 52 mm

NVR Weight (Without Hard Disk): 6.6 lbs. / 3 kg

Compatibility and accessories

Supports up to 16 PoE IP cameras

Compatible with third-party network cameras

Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB

NVR supports up to 8 TB HDD capacity for each disk (not included)

Installation

Easy installation with PoE technology, eliminating the need for separate power cables

Includes 2 SATA interfaces for recording and backup

Usage

Remote monitoring via mobile devices (iPhone, iPad, Android)

Live visualization, recording, and playback at up to 12MP resolution

Smart detection features to minimize false alerts

Other information

Features

Brand
ANNKE
Width
6.6 cm
Height
6.91 cm
Voltage
12 V
Material
Plastic
