General description
The ANNKE 16CH 24/7 Recording Surveillance PoE NVR system includes 8 high-definition 3K cameras and a 2TB HDD, providing a comprehensive security solution for your home or business. With advanced features such as smart dual light technology for night vision, a wide viewing angle, and customizable motion detection, this system ensures that you capture every detail, day or night.
Technical specifications
- Camera Image Sensor: 1/3" Progressive Scan BSI CMOS

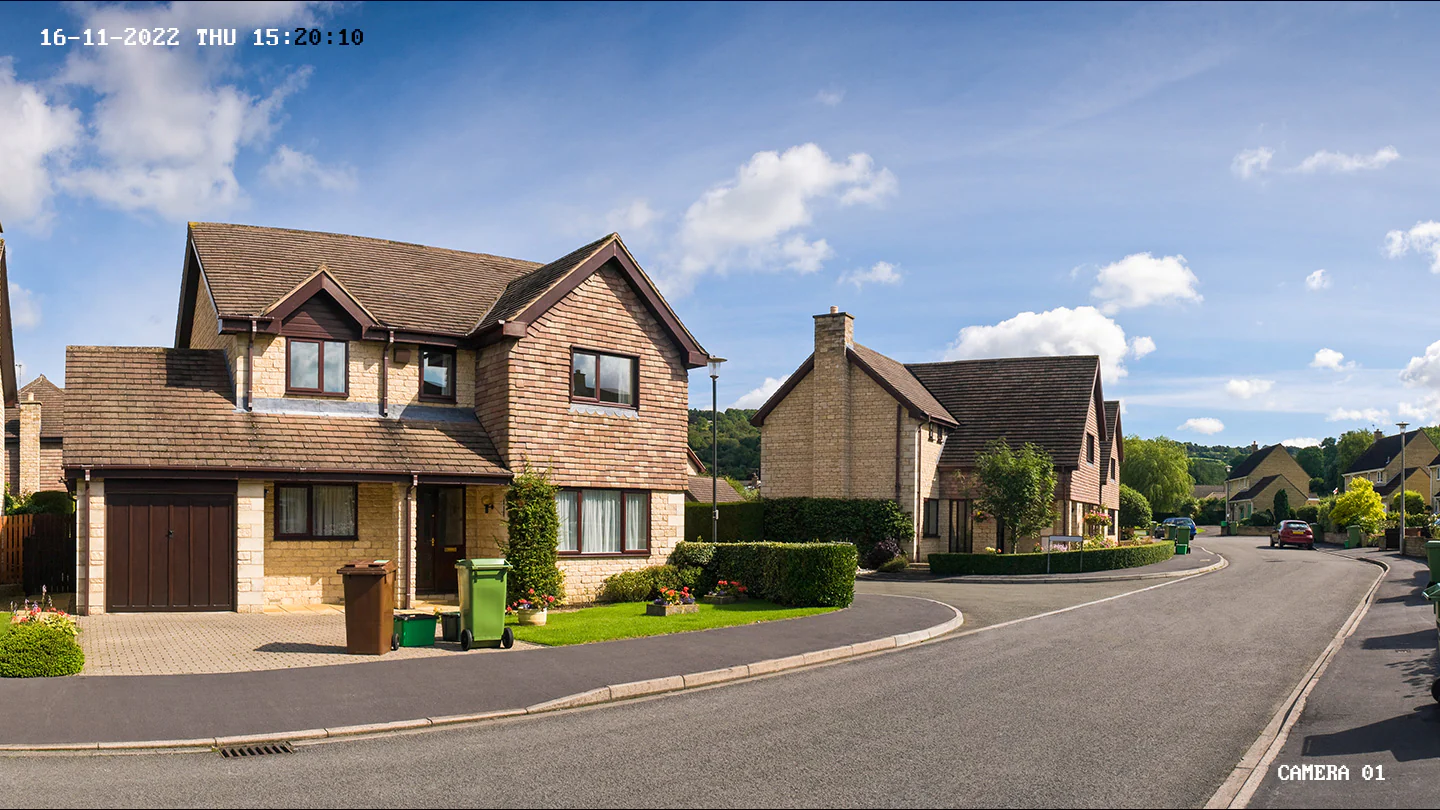

- Camera Max Resolution: 3K (3072x1728) at 20fps
- Lens: 2.8mm @ F1.6

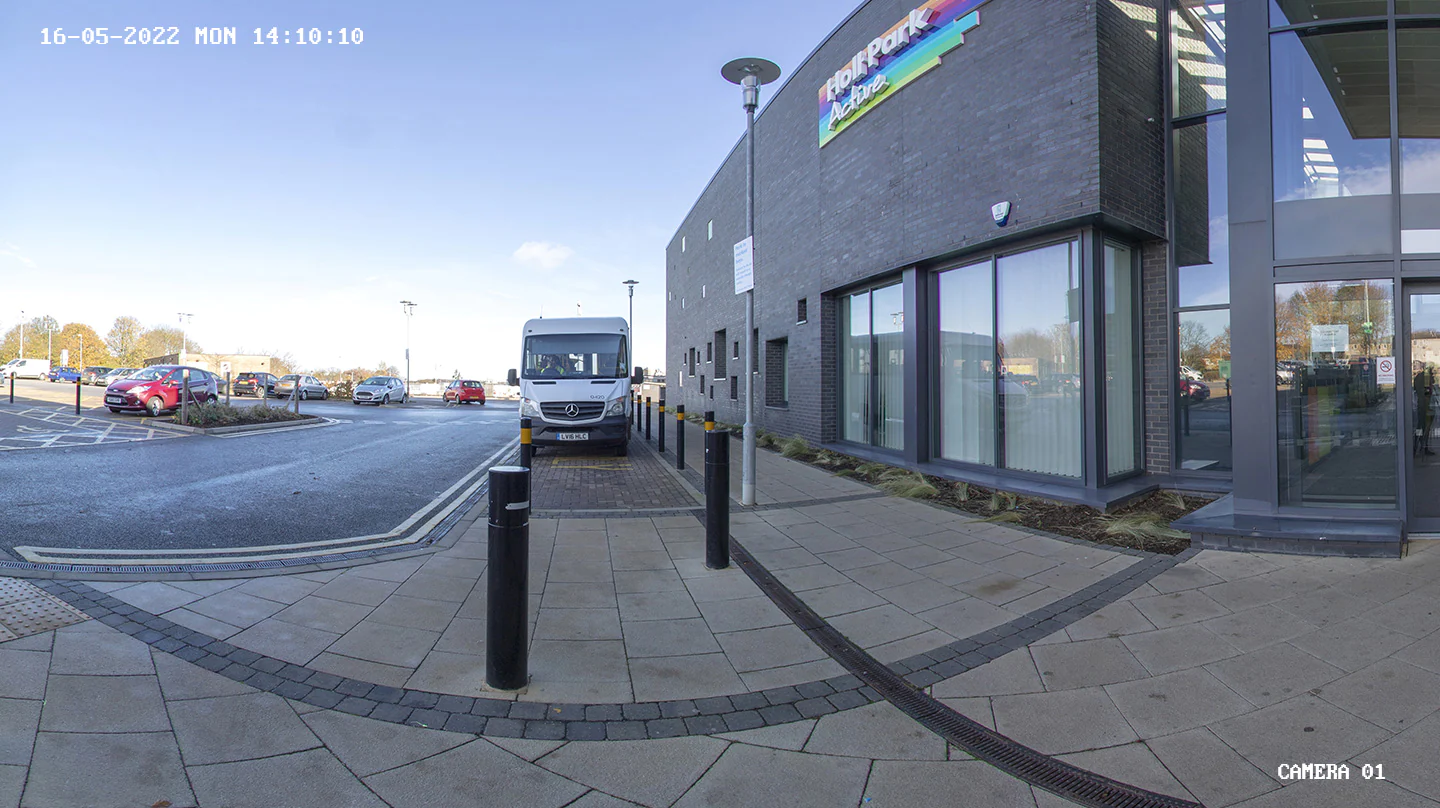

- Viewing Angle: 116°
- Video Compression: H.264+/H.264/H.265/H.265+
- Max Recording Resolution: Up to 8MP (3840 x 2160) @ 30fps
- Max Playback Resolution: Up to 8MP (3840 x 2160) @ 30fps
- Operating Power: DC 48V
- Power Consumption: ≤10W (without HDD and PoE)
- Dimensions (NVR): 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm)
- Weight (NVR without HDD): 2.2 lbs (1 kg)
- Camera Weight: Approx. 550g (1.2 lbs)
- Operating Temperature: -22°F to 140°F (-30°C to 60°C)
- IP Rating: IP67 (weatherproof)
Compatibility and accessories
- Includes 8 PoE IP cameras
- 2TB HDD for storage
- Power adapter and user manuals for both NVR and cameras
Installation
The ANNKE NVR system is designed for easy installation. Simply connect the PoE IP cameras to the NVR using Ethernet cables for a plug-and-play setup. The system is compatible with cameras supporting H.265+ compression for efficient storage management.
Usage
This surveillance system is ideal for monitoring homes, offices, and other properties. Users can customize motion detection areas to minimize false alerts and receive instant notifications via email or app when motion is detected. The system supports remote monitoring through the "Annke Vision" app, allowing users to view live footage from anywhere.
