ANNKE 8 Channel 3K Lite Security DVR Recorder AI Human/Vehicle Detection H.265+ 5-in-1 CCTV DVR Supports 2CH IP Cameras (No Hard Drive)

Name: ANNKE 8 Channel 3K Lite Security DVR Recorder AI Human/Vehicle Detection H.265+ 5-in-1 CCTV DVR Supports 2CH IP Cameras (No Hard Drive)
Brand: ANNKE
SKU: AK-DW81KD000-V6-OP
Price: 95.99 GBP
Availability: InStock
Rating: 5 (1 reviews)

(£95.99/kg)

~~£191.98~~

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by ANNKE Security kit

Product information

Description

General description

ANNKE 8 Channel 3K Lite Security DVR Recorder is a versatile 5-in-1 CCTV DVR that supports up to 8 analog cameras and 2 IP cameras. It features advanced AI human and vehicle detection, ensuring efficient motion detection and reducing false alarms. With high-definition live viewing and recording capabilities, this DVR is ideal for comprehensive security monitoring.

Technical specifications

Video Compression: H.264+/H.264/H.265/H.265+

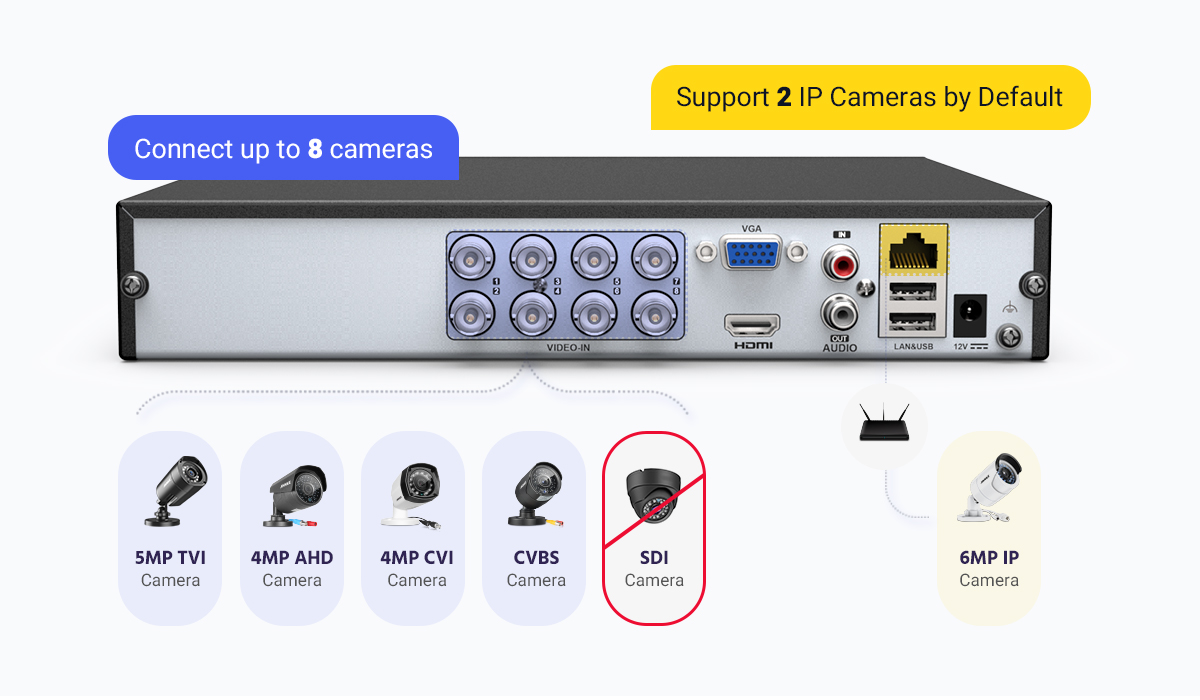

Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channels in IP enhanced mode)

Video Output: HDMI and VGA Up to 1080P

Audio Input: 1-ch RCA, 8-ch via coaxial cable

Audio Output: 1-ch RCA

Supported Camera Types: HD TVI (3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p), AHD (4MP, 1080p, 720P), CVI (4MP, 1080p, 720P), CVBS, IP Video (6MP/5MP/4MP/3MP/1080P/720P)

Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps

IPC Playback Resolution: Up to 6MP

Max Playback Channel: 2-ch

Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS

Motion Detection: Supports human and vehicle detection on all analog channels

Hard Drive: 1 SATA interface, up to 10TB capacity

External Interface: 1 RJ45 10M/100M self-adaptive Ethernet interface

USB: USB2.0x2

Operating Power: DC12V, ≤ 12W (without HDD)

Working Temperature: -14 °F – 131 °F / -10 °C – 55 °C

Dimensions (W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Weight (without hard disk): ≤ 1 kg (2.2 lb)

Compatibility and accessories

Compatible with all types of analog cameras and ONVIF IP cameras

Includes: 1 NVR, 1 Power Adapter, 1 User's Manual

No hard drive included

Installation

For optimal performance, pair the DVR with ANNKE security cameras. After installing an HDD, you can record continuously even without Internet access. For remote access and playback, Internet connectivity is required.

Usage

Customize motion detection areas to receive alerts only for relevant movements. The DVR supports scheduled, motion-triggered, or event-triggered recordings for flexible usage.
