General description

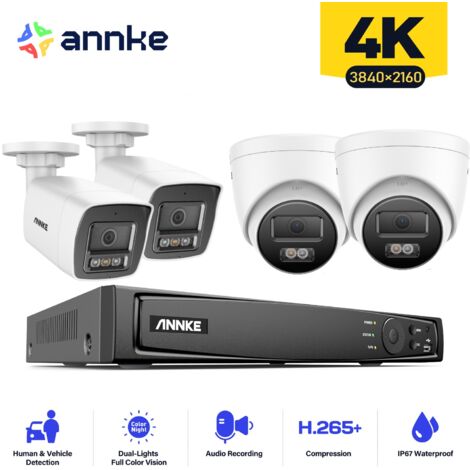

ANNKE 16CH 4K PoE Security Camera System features 8MP resolution with 4 bullet and 4 tower outdoor surveillance cameras. It is designed to provide high-quality video surveillance with advanced night vision capabilities and intelligent motion detection.Technical specifications
- Camera Sensor: 1/2.4" Progressive Scan CMOS
- Max Resolution: 3840*2160 (8MP)
- Main Stream: 50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Substream: 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression: H.265+/H.265/H.264+/H.264 (Main stream); H.265/H.264/MJPEG (Sub-stream)
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Lens: 4 mm
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Angle of View: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
- Supplement Light Range: Up to 30 m
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F – 140 °F / -30 °C – 60 °C
- Dimension (L X W X H): 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
- Weight: 0.6 lb / 285 g
Compatibility and accessories
- Supports up to 512 GB microSD/SDHC/SDXC storage
- Compatible with ANNKE NVR for enhanced functionality
Installation
- Easy installation with PoE technology, requiring only one cable for power and data
- Mounting hardware included for secure installation
Usage
- Ideal for both indoor and outdoor surveillance
- Real-time monitoring and playback through ANNKE software
- Audio recording capability with built-in microphone
