General description
The ANNKE 16CH H.265+ Super HD POE NVR Video Security System includes 8 high-definition 3K dome outdoor security cameras and a 2TB HDD. This system is designed to provide ultra-clear video surveillance with advanced features for both day and night monitoring.
Technical specifications
- Camera Image Sensor: 1/3" Progressive Scan BSI CMOS
- Max Resolution: 3K (3072x1728) at 20fps
- Lens: 2.8mm @ F1.6
- Viewing Angle: 116°
- Video Compression: H.264+/H.264/H.265/H.265+
- Max Recording Resolution: Up to 8MP (3840 x 2160) @ 30fps
- Max Playback Resolution: Up to 8MP (3840 x 2160) @ 30fps
- Operating Power: DC 48V
- Power Consumption: ≤10W (Without HDD and PoE)
- Dimensions (NVR): 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm)
- Weight (NVR): 2.2 lbs (1 kg)
- Operating Temperature: -22°F to 140°F (-30°C to 60°C)

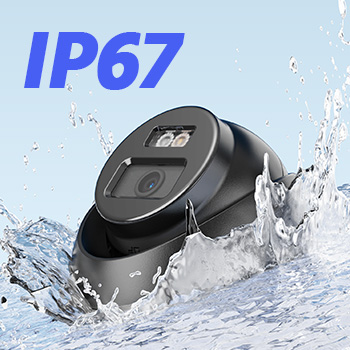

- IP Rating: IP67 (Dust and Waterproof)
Compatibility and accessories
- Includes 8 cameras
- 2TB HDD for storage
- Power Adapter
- User's Manuals for both NVR and cameras
Installation
The ANNKE NVR is designed for easy plug-and-play installation. Simply connect the PoE IP cameras to the NVR using Ethernet cables for straightforward setup and management.
Usage
This security system is ideal for monitoring homes and businesses. Users can access live video feeds remotely via the "Annke Vision" app on smartphones, tablets, or PCs. The system supports customizable motion detection zones to minimize false alerts and allows for smart playback functions to quickly review recorded footage.
