General description

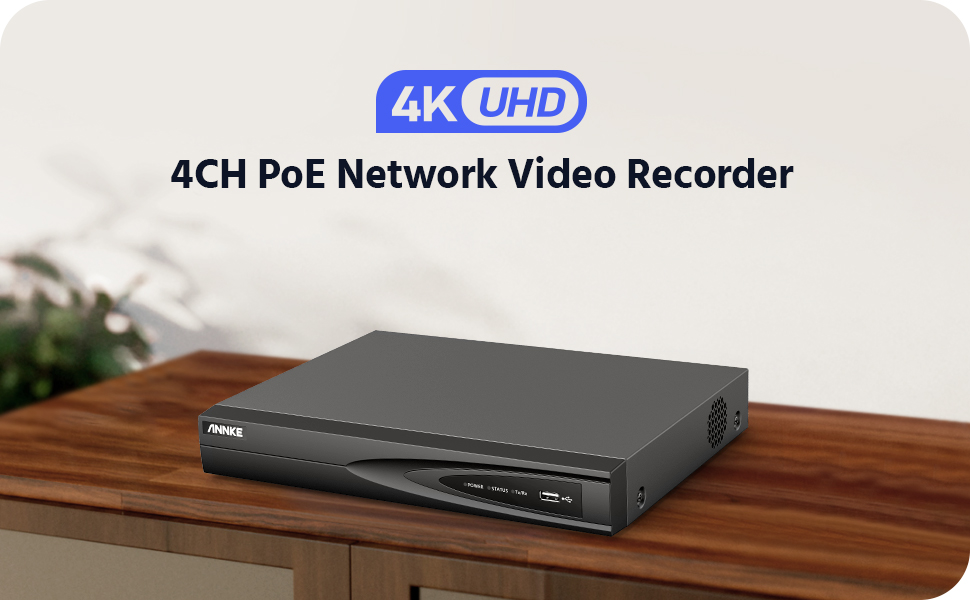

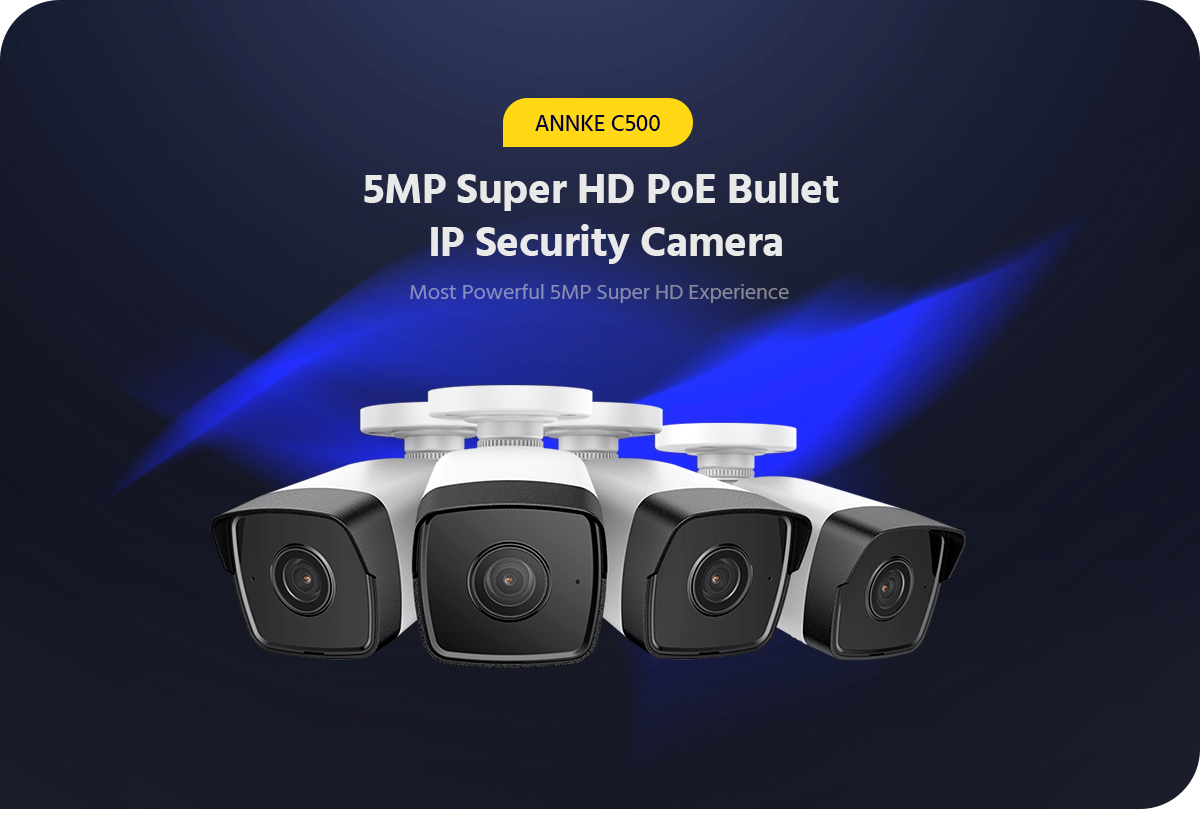

The ANNKE 3Camera 5MP Super HD 4CH NVR IP Security Camera System offers advanced surveillance capabilities with true 3K Super HD resolution at 20 fps, utilizing an OmniVision sensor, 120 dB true WDR, and 3D DNR technology. This system is designed for outdoor use with an IP67 weatherproof rating, ensuring durability in various weather conditions. It includes three cameras that provide a wide 90° diagonal field of view, making it suitable for monitoring large areas such as yards, parking lots, and warehouses.
Technical specifications
- Camera Resolution: 3K (3072 x 1728 pixels)
- Video Compression: H.265+/H.265/H.264+/H.264
- Max Playback Resolution: Up to 12MP (4096 x 3072) at 30 fps
- Max Recording Resolution: Up to 12MP (4096 x 3072) at 30 fps
- Video Output: HDMI up to 4K (4096 x 2160), VGA up to 1080p (1920 x 1080)
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F (-10 °C ~ +55 °C)
- Dimensions (NVR): 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm)
- Weight (NVR): 2.2 lbs (1 kg)
- Camera Dimensions: 7.0" x 2.6" x 2.7" (177.6 x 66.2 x 67.8 mm)
- Camera Weight: 0.6 lb (270 g)
Compatibility and accessories
- Connectable to IP Cameras Supporting H.265+
- Includes 1 NVR, 3 Cameras, 1 Power Adapter, User's Manual for NVR, User's Manual for Camera
- HDD Capacity: Up to 8 TB (not included)
Installation
The ANNKE NVR is designed for easy plug-and-play installation. Simply connect the PoE IP cameras to the NVR using Ethernet cables for straightforward setup and management.
Usage
- Remote monitoring via the "Annke Vision" app on smartphones, tablets, and PCs.
- Customizable motion detection settings to minimize false alerts.
- Audio recording capability with a built-in microphone for enhanced security coverage.
Other information
Images and videos of the product can be found at the following links:
