General description

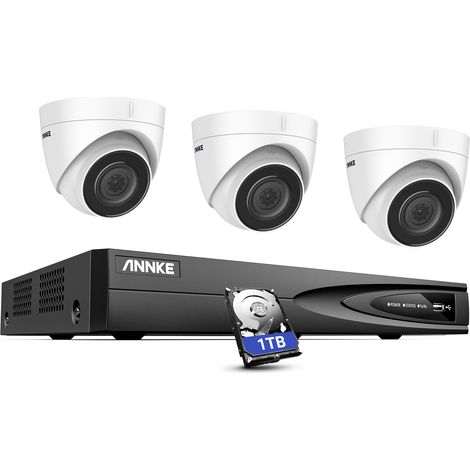

ANNKE 4 Channel POE NVR Security Camera System offers a comprehensive surveillance solution with 5MP Super HD resolution and color night vision capabilities. This system includes three high-quality cameras designed for both indoor and outdoor use, featuring IP67 weatherproof ratings to withstand harsh environmental conditions. The built-in microphone allows for audio recording, ensuring that you capture both video and sound for a complete security experience.Technical specifications
- Camera Image Sensor: 1/3" Progressive Scan CMOS
- Main Stream Max. Frame Rate: 50Hz: 20 fps (2592 × 1944, 2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 20 fps (2592 × 1944, 2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Substream Max. Frame Rate: 50Hz: 25 fps (640 X 480, 640 X 360, 320 X 240); 60Hz: 30 fps (640 X 480, 640 X 360, 320 X 240)
- Video Compression: H.265+/H.265/H.264+/H.264
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Lens: 2.8 mm
- Min. Illumination: Color: 0.028 Lux @(F2.0, AGC On)
- Angle of View: Horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115°
- Night Vision Distance: Up to 100 ft/30 m
- Dimensions (Camera): Ø110 mm X 85.3 mm (Ø4.3" X 3.4")
- Weight (Camera): 320 g (0.7 lb.)
- NVR Dimensions: 12.4” X 9.4” X 1.9” (315 X 240 X 48 mm)
- Weight (NVR without HDD): 2.2 lbs (1 kg)
- Operating Temperature: -22 °F – 140 °F (-30 °C – 60 °C)
- Power Consumption: ≤10 W (Without HDD and PoE), Max 25.5 W for Single Port
Compatibility and accessories
- Connectable to IP Cameras Supporting H.265+/H.265/H.264+/H.264 coding format
- Packaging Contents: NVR: 1, Power Adapter: 1, User's Manual For NVR: 1, Hard Drive: 1TB, Camera: 3
Installation
- Plug and play setup for easy configuration and control
- Connect all PoE IP cameras to the NVR via Ethernet cables
Usage
- Quick remote monitoring through the "Annke Vision" app on smartphones, tablets, and PCs
- Customizable motion detection areas to minimize false alerts
- Privacy mask feature to block out specific areas from recordings
