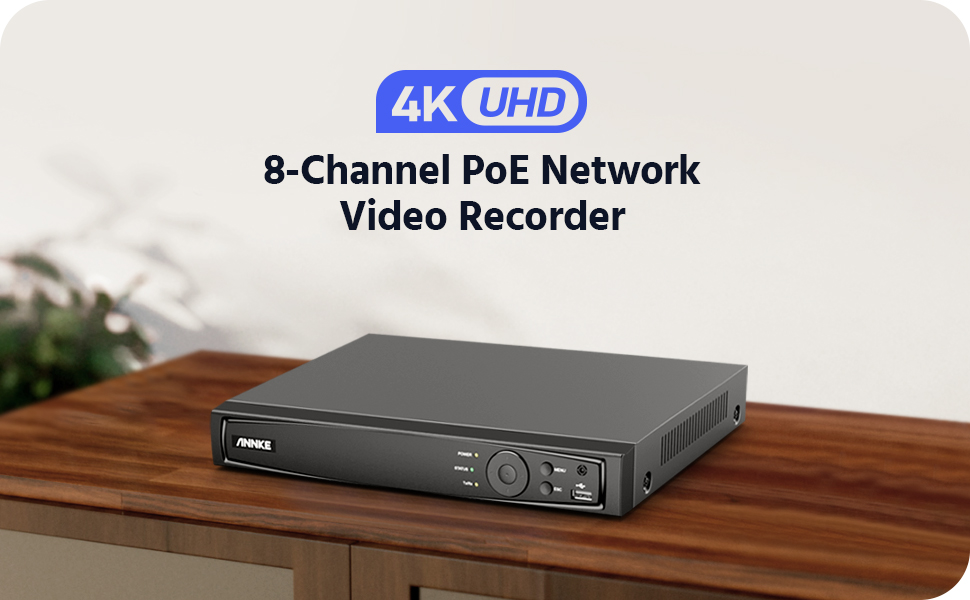

ANNKE 4K 8 Channel PoE NVR Security System,5MP× 8 Cameras,IP67 Waterproof Outdoor Video Surveillance Kit,EXIR 2.0 Night Vision, Built-in Mic & SD Card Slot - 1TB HDD

General description

The ANNKE 4K 8 Channel PoE NVR Security System is a comprehensive video surveillance kit that includes 8 high-definition 5MP cameras. Designed for outdoor use, these cameras feature IP67 waterproof ratings and advanced night vision capabilities. With built-in microphones and a 1TB HDD, this system ensures detailed audio-visual recording for enhanced security.

Technical specifications

• Video Compression: H.264+/H.264/H.265/H.265+
• IP Video Input: 8CH PoE
• Video Output: HDMI up to 4K, VGA up to 1080p
• Audio Input/Output: 1/1 RCA
• Incoming/Outgoing Bandwidth: 80/80 M
• Max Recording Resolution: Up to 8MP (3840 X 2160)@30fps
• Max Playback Resolution: Up to 8MP (3840 X 2160)@30fps
• Max Playback Channel: 8CH
• Max Playback Capacity: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
• ONVIF Protocols: Support
• HDD: 1 SATA Interface, Up to 8 TB Capacity
• Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
• PoE: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
• USB interface: USB 2.0*2
• Deep learning: Human and vehicle targets detection (Need IP camera support)
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Need IP camera support)
• Operating Power: DC 48 V
• Power Consumption: ≤10 W (Without HDD and PoE), Max 25.5 W for Single Port
• Working Temperature: 14 °F ~ 131 °F / -10 °C ~ +55 °C
• Dimensions (W X H X D): 12.4” X 9.4” X 1.9” / 315 X 240 X 48 mm
• Weight (Without Hard Disk): 2.2 lbs / 1 kg

Compatibility and accessories

• Connectable to IP Cameras Supporting H.265+
• Includes 1TB Hard Drive
• Packaging Contents: NVR (1), Power Adapter (1), User's Manual For NVR (1), Camera (8), User's Manual For Camera (1)

Installation

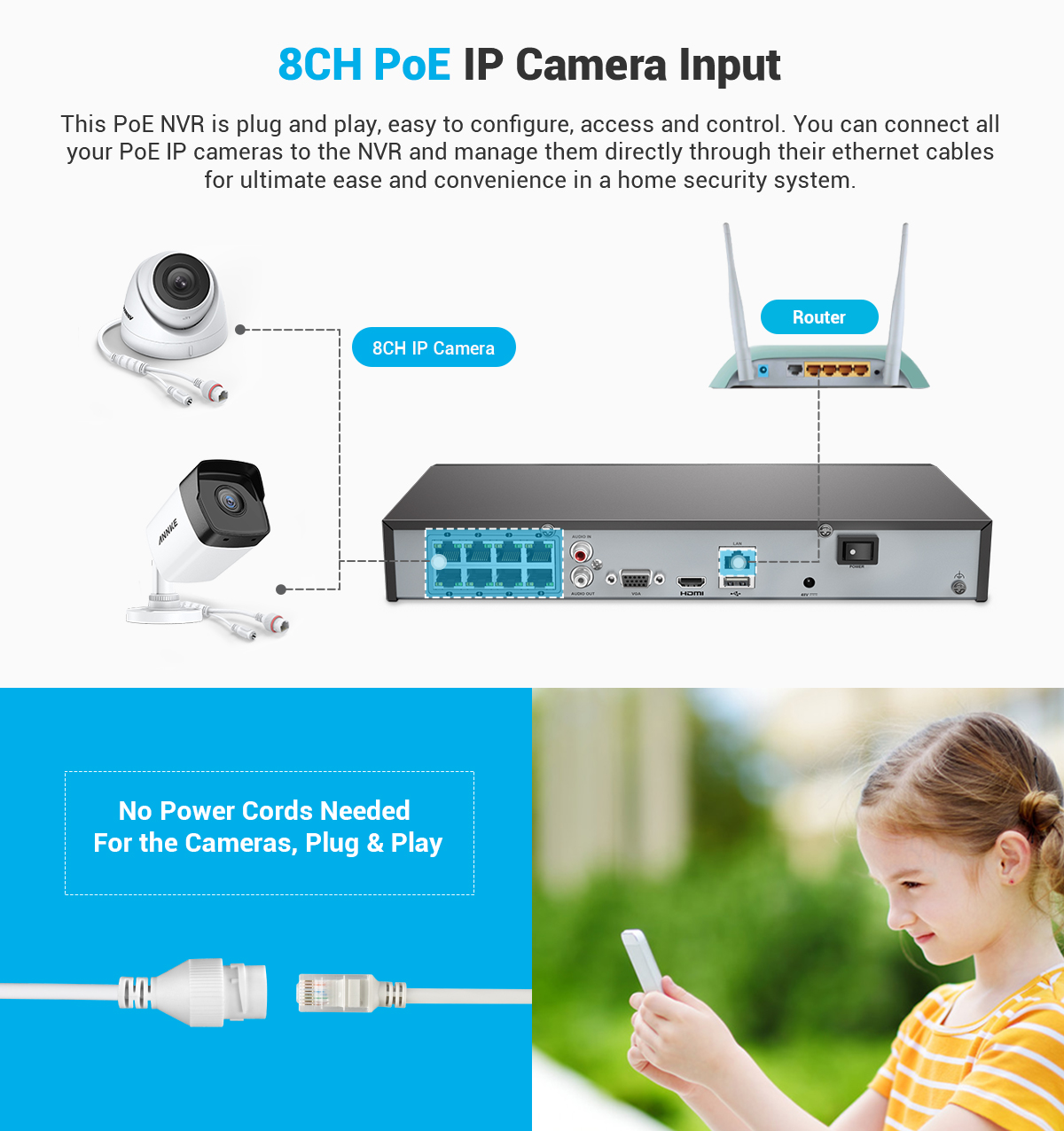

This PoE NVR is designed for easy plug-and-play installation. Simply connect all your PoE IP cameras to the NVR using Ethernet cables for straightforward setup and management.

Usage

Monitor your property remotely using the free "Annke Vision" app available for smartphones, tablets, and PCs. Quick scan the QR code to add the system and access live video feeds from anywhere in the world.
