General description

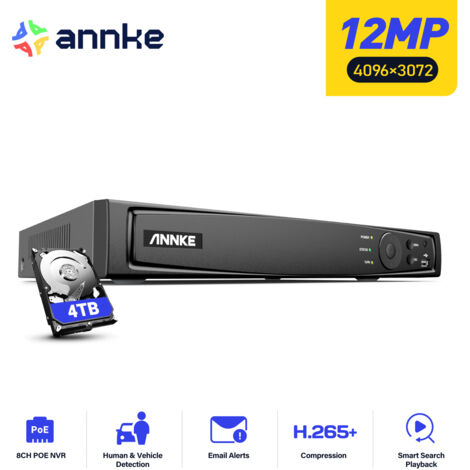

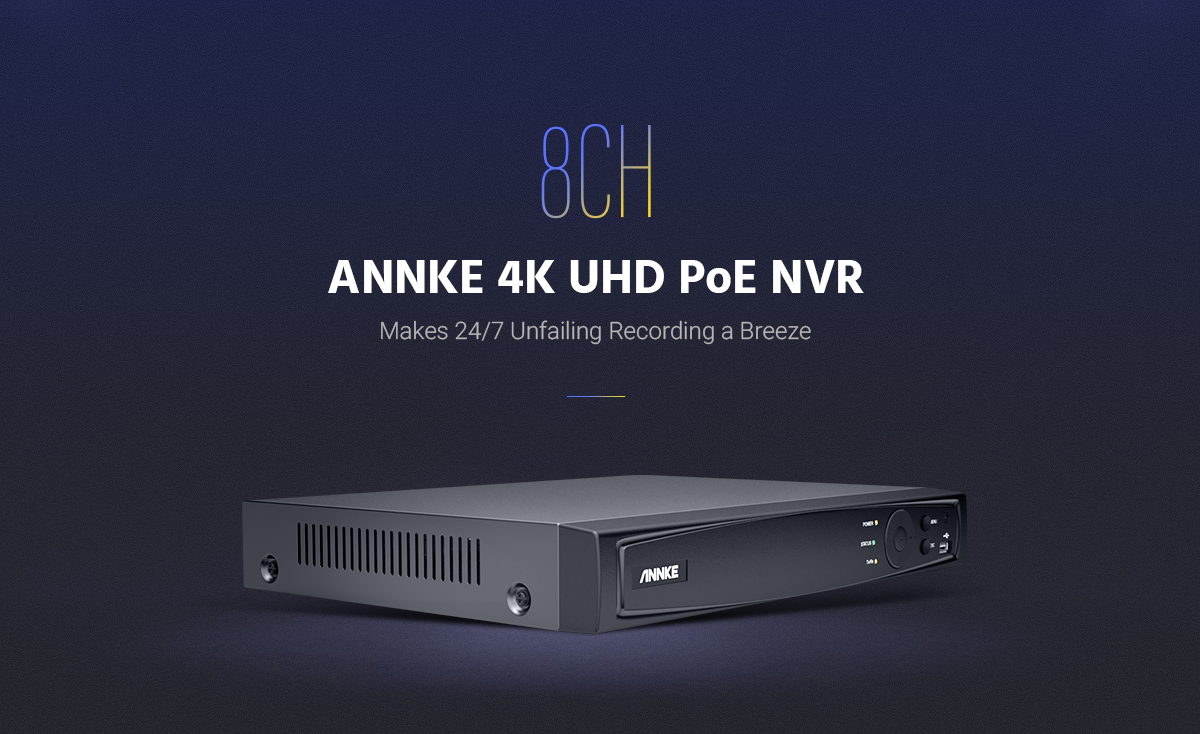

The ANNKE 4K PoE CCTV NVR is a powerful network video recorder designed for use with 2MP to 8MP IP PoE cameras. It features advanced video compression technology and supports real-time live viewing, recording, and playback at high resolutions. With a 4TB hard drive included, this system is ideal for comprehensive surveillance needs.Technical specifications
- Video Decoding Format: H.264+/H.264/H.265/H.265+
- IP Video Input: 8CH PoE
- Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p (1920 × 1080)
- Audio Input/Output: 1/1 RCA
- Incoming/Outgoing Bandwidth: 80/80 Mbps
- Max Recording Resolution: Up to 8MP (3840 X 2160)@30fps
- Max Playback Resolution: Up to 8MP (3840 X 2160)@30fps
- Max Playback Channel: 8CH
- Max Playback Capacity: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
- HDD Capacity: Up to 8 TB
- External Interface: 1 RJ-45 10/100Mbps self-adaptive Ethernet interface
- PoE: 8 RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
- USB Interface: USB 2.0*2
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE), Max 25.5 W for Single Port
- Working Temperature: 14 °F ~ 131 °F/-10 °C ~+55 °C

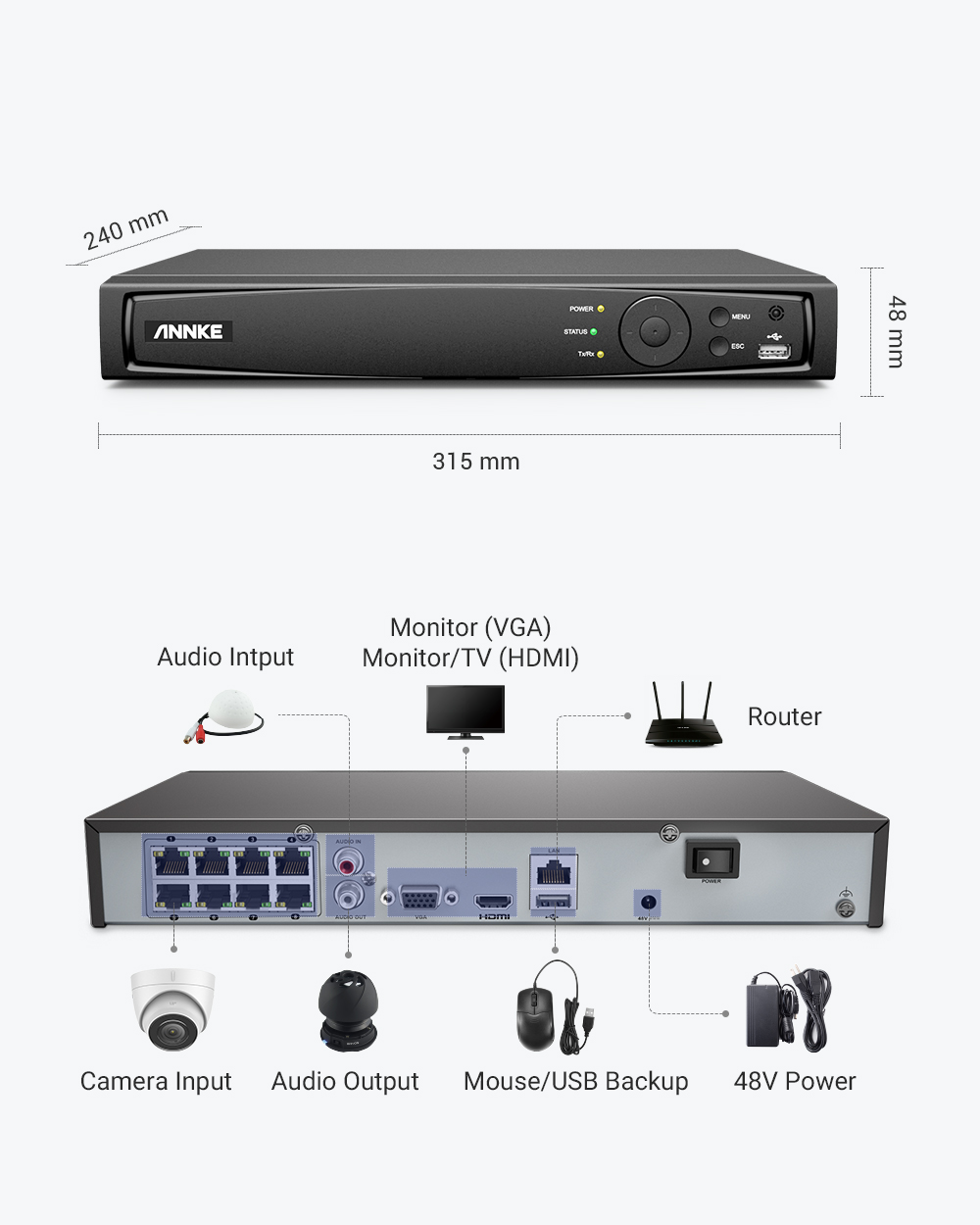

- Dimensions (W X H X D): 12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
- Weight (Without Hard Disk): 2.2 lbs/1 kg
Compatibility and accessories
- Compatible with 2MP, 4MP, 5MP, 6MP, and 8MP IP PoE cameras
- Includes 4TB hard drive

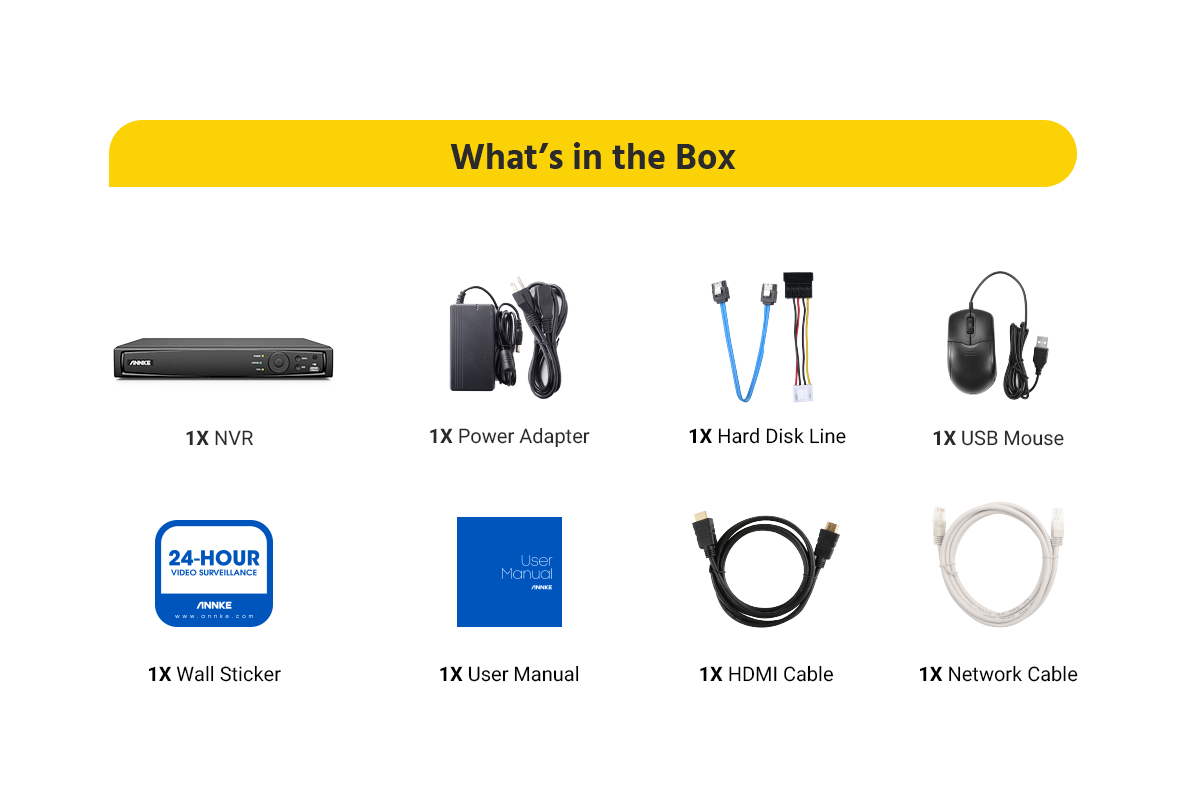

- Power Adapter and User's Manual included
Installation
- Easy installation with plug-and-play setup for PoE cameras
- Connect to a monitor via HDMI or VGA for configuration
Usage
- Real-time monitoring and playback of recorded footage
- Customizable motion detection alerts for specific areas
- Remote access via mobile devices (iPhone, iPad, Android)
