General description

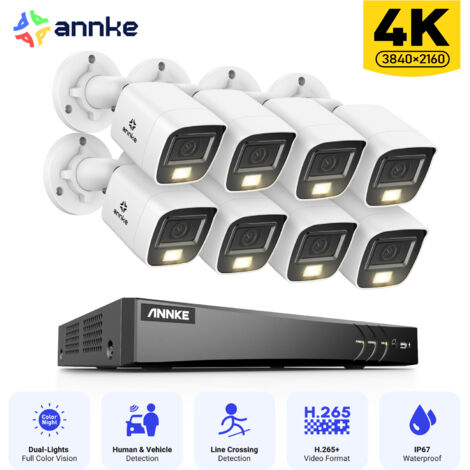

The ANNKE 4K Wired Outdoor Turret CCTV Camera Kit includes an 8-channel DVR and 8 high-resolution cameras, designed for comprehensive security monitoring. With advanced features such as color and infrared night vision, this system ensures clear imaging both day and night. The cameras are IP67 rated, making them resistant to dust and water, suitable for outdoor use.Technical specifications
- Camera Resolution: 4K (3840×2160)
- Lens: 2.8 mm
- Field of View: Horizontal 108°, Vertical 59°, Diagonal 127°
- IR Distance: Up to 25 m
- White Light Distance: Up to 20 m
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Operating Power: DC 12V
- Operating Temperature: -40 °F to 140 °F (-40 °C to 60 °C)
- Weatherproof Rating: IP67
- Camera Dimensions: 84.6 mm × Ø 85.02 mm (3.33" × Ø 3.35")
- Camera Weight: Approx. 230 g (0.51 lb)
- DVR Dimensions: 315 mm x 242 mm x 45 mm
- DVR Weight: ≤ 2 kg (4.4 lbs) (without HDD)
Compatibility and accessories
- Supports TVI/AHD/CVI/CVBS camera types
- Compatible with DVRs that support AI features for dual light functionality
- Maximum HDD capacity: Up to 10 TB
Installation
- Easy installation with a standard DC 12V power supply
- Connect the cameras to the DVR using BNC cables
Usage
- Remote access via mobile devices (iPhone, iPad, Android)
- Real-time monitoring and recording capabilities
- Advanced motion detection with deep learning technology to reduce false alarms
