Name: ANNKE 8CH 5-in-1 CCTV Security DVR,3K Lite H.265+ CCTV DVR Supports 8CH Analog and 2CH IP Cameras - 2TB HDD
Brand: ANNKE
SKU: AK-DW81KD200-V6-OP
Price: 178.99 GBP
Availability: InStock

Product information

Description

General description

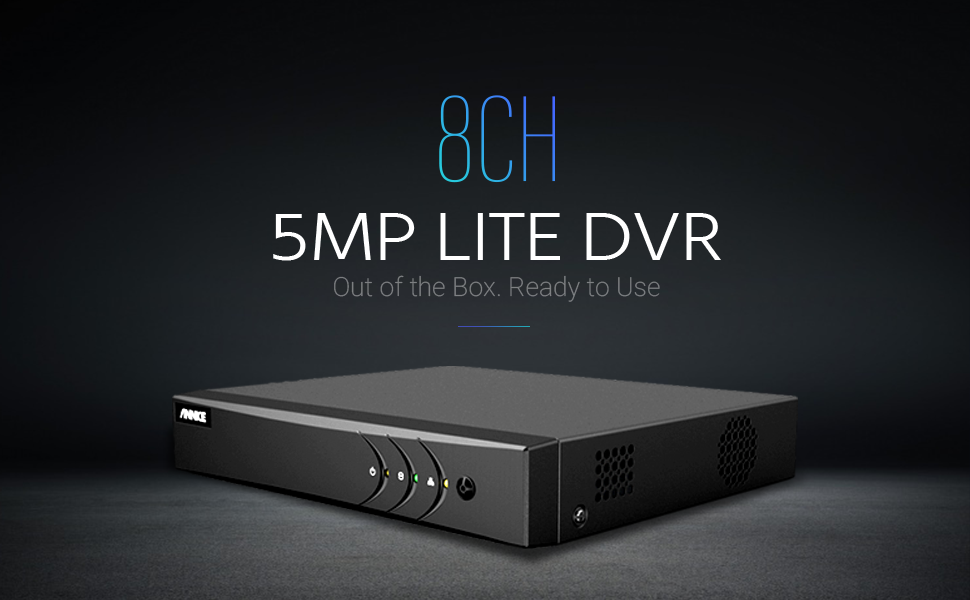

This ANNKE 8CH 5-in-1 CCTV Security DVR offers advanced surveillance capabilities with support for 8 analog channels and 2 IP cameras. It features high-definition live viewing and recording up to 3K resolution, utilizing H.265+ video compression for efficient storage without compromising quality. This DVR is compatible with various camera types and is designed for both local and remote monitoring.

Technical specifications

Video Compression: H.264+/H.264/H.265/H.265+

Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channels in IP enhanced mode)

Video Output: HDMI and VGA up to 1080P

Audio Input: 1-ch RCA, 8-ch via coaxial cable

Audio Output: 1-ch RCA

Supported Camera Types: HD TVI (3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p), AHD (4MP, 1080p, 720P), CVI (4MP, 1080p, 720P), CVBS, IP (6MP/5MP/4MP/3MP/1080P/720P)

Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps

IPC Playback Resolution: Up to 6MP

Max Playback Channel: 2-ch

Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS

Motion Detection: Supports human and vehicle detection on all analog channels

HDD Capacity: Up to 10TB

Operating Power: DC12V, ≤ 12W (without HDD)

Working Temperature: -14 °F – 131 °F / -10 °C – 55 °C

Dimensions (W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Weight (without hard disk): ≤ 1 kg (2.2 lb)

Compatibility and accessories

Compatible with ANNKE security cameras for optimal performance

Includes 2TB HDD for storage

Packaging Contents: 1 NVR, 1 Power Adapter, 1 User's Manual for NVR

Installation

Easy installation with the option to record continuously even without Internet after pairing with ANNKE cameras and installing the HDD

Usage

Remote access and playback require Internet connection

Customize motion detection areas for relevant alerts

Supports scheduled, motion-triggered, or event-triggered recordings for flexible usage

Other information

Features

Brand
ANNKE
Height
6.62 cm
IP rating
IP66
Material
Plastic
Supported camera types
Analog
ManoMano Reference
ME84961579
MMID
762787732942
Product code
AK-DW81KD200-V6-OP
EAN
5070991368637
