General description

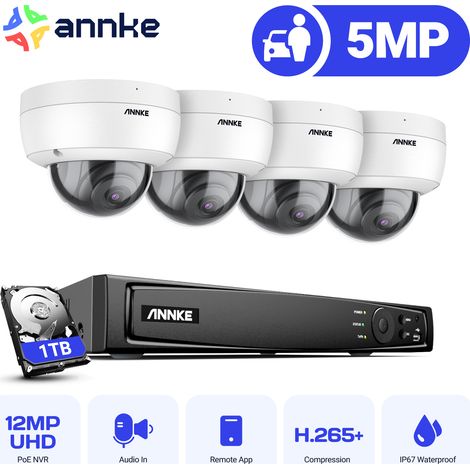

This ANNKE 8CH CCTV Kit includes a 4K NVR and four 5MP cameras, providing a comprehensive security solution for your home or business. The system features advanced motion detection, remote monitoring capabilities, and high-quality night vision, ensuring that you can keep an eye on your property at all times.Technical specifications
- Max Recording Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Max Playback Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Video Output: HDMI up to 4K (4096 x 2160), VGA up to 1080p (1920 x 1080)
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F (-10 °C ~ +55 °C)
- Dimensions (NVR): 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm)
- Weight (NVR): 2.2 lbs (1 kg)
- Camera Max Resolution: 3K (3072 x 1728)
- Camera Lens: 4 mm
- Night Vision Distance: Up to 100 ft (30 m)
- Camera Dimensions: Ø120 x 92.2 mm (4.72" x 3.63")
- Camera Weight: 0.6 lb (270 g)
Compatibility and accessories
- Supports up to 8 channel IP cameras with built-in PoE inputs
- Connectable to third-party network cameras
- Built-in microSD/SDHC/SDXC Slot, supports up to 256 GB
Installation
- Easy installation with PoE support for simplified wiring
- Includes necessary mounting hardware for cameras
Usage
- Live view, recording, and playback capabilities
- Customizable motion detection areas and privacy masks
- Multiple recording options: continuous, scheduled, or motion-triggered
- Remote monitoring via iPhone, iPad, and Android devices
