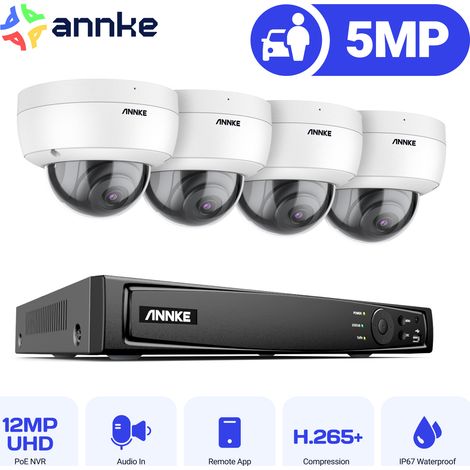

ANNKE 8CH CCTV Kit 4K NVR 4×5MP Camera Full HD IR Night Vision Waterproof Dome Camera Motion Detection Remote Monitoring Security System

Key Features:

NVR:

★ Live view, recording&playback up to 12 MP resolution
★ Up to 8 channel IP cameras can be connected with built-in PoE inputs
★ Advanced H.265+ Video Compression
★ Supports iPhone、iPad、Android mobile remote monitoring
★ Connectable to the third-party network cameras
★ HDMI Video output at up to 4K (40960 × 2160) resolution
★ Annke Vision for easy remote view
★ Support 4-ch Human and vehicle targets detection

Camera:

★ 3K IR Network Camera with 16:9 image scale
★ 4mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Up to 100ft night vision with EXIR 2.0
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in Microphone, record with audio
★ Built-in microSD/SDHC/SDXC Slot, up to 256 GB
★ IP67 Dust and Waterproof Rating & IK10
★ Support PoE &DC12V

• 【4K Ultra HD Live View & Record】
  This powerful NVR is able to record smooth  real-time 4K videos on all 8 channels. If an incident occurs, 4K footages will offer the best chance to capture crystal & useful evidences.

• 【Quadruple Video Coding Options】
  *Quadruple H.264/H.264+/H.265/H.265+ coding allows for maximum encryptions with the latest tech & backwards compatibility with legacy platforms.
  *H.265+ video format provides fast stream without latency, consumes less bandwidth and records longer videos than H.264 systems.

• 【Customized Motion Areas & Privacy Mask】
  *Customize the vital areas, like front door, garage, to receive alerts only when motion events happen in these areas.
  *Mask the private areas, such as windows, license plates to protect your privacy. The NVR will ignore the areas when recording videos 24/7.

• 【Smart Motion Detection Alerts 】
  *When there are motion events, you'll receive instant app pushes & email alerts and the buzzer alarms of the NVR.
  *Access the NVR to check the motion events and take actions at once to deter intruders before intrusion.

• 【Multiple Recording Options】
  *24/7 continuous record: Record footages all of the time both day & night.
  *Scheduled recording: Set up the NVR recording videos based on your scheduled time.
  *Motion recording: Record videos only when there are motion events to save the storage space.

NVR:

Decoding Format	H.264+/H.264/H.265/H.265+
IP Video Input	8CH PoE
Video Output	HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080)
Audio Input/Output	1/1 RCA
Incoming/outgoing Bandwidth	80/80 Mbps
Max Recording Resolution	Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
Max Playback Resolution	Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
Max Playback Channel	8CH
Max Playback Capacity	1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
HDD	1 SATA Interface
HDD Capacity	Up to 8 TB Capacity
Network Interface	1, RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE	8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
USB interface	USB 2.0*2
Deep learning	8-ch Human and vehicle targets detection(Need IP camera support)
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection(Need IP camera support)
Operating Power	DC 48 V
Power Consumption	≤10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port
Working Temperature	14 °F ~ 131 °F/-10 °C ~+55 °C
Dimensions (W X H X D)	12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
Weight (Without Hard Disk)	2.2 lbs/1 kg

Camera:

Image Sensor	1/3" Progressive Scan CMOS
Max resolution	3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
Main Stream	50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) 60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
Substream	50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) 60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bitrate	32 Kbps - 6 Mbps
Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Input	Built-in Microphone, record with audio
Lens	4 mm
Min. Illumination	Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Angle of View	Horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
Number of Infrared LEDs	2 pcs
Night Vision Distance	Up to 100 ft/30 m
Motion detection 2.0	Supoort, include Human & Vehicle detection
Image Enhancement	BLC, HLC, 3D DNR
Wide Dynamic Range	120 dB WDR
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
API	Open Network Video Interface
Region of Interest (ROI)	1 fixed region for main stream
Privacy Mask	4 programmable polygon privacy masks
General Function	Mirror,rotate,password protection,video tampering alarm, remote access
Ethernet	1 RJ45 10 M/100 M self-adaptive Ethernet port
Housing	Metal & Plastic
Color	White
Storage	Built-in microSD/SDHC/SDXC Slot, up to 256 GB
Hardware Reset	Yes
Operating Power	DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
Operating Temperature	-22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor Use	Indoor/Outdoor
Interface Protection	IP67, IK10, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension (L X W X H)	Ø120 × 92.2 mm (4.72" × 3.63")
Weight	0.6 lb./270 g
