General description

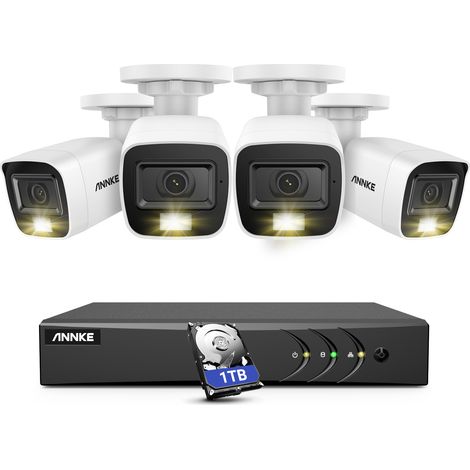

ANNKE 8CH CCTV Kits offer a comprehensive security solution with a 5 in 1 DVR system featuring a built-in microphone and smart IR technology. This system supports remote monitoring through mobile devices and provides high-definition video recording and playback capabilities.Technical specifications
- Video Compression: H.264+/H.264/H.265/H.265 Pro+
- Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channels in IP enhanced mode)
- Video Output: HDMI and VGA Up to 1080P
- Audio Input: 1-ch RCA, 8-ch via coaxial cable
- Audio Output: 1-ch RCA
- Supported Camera Types: HD TVI, AHD, CVI, CVBS, IP Video Input (up to 6MP)
- Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
- IPC Playback Resolution: Up to 6MP
- Max Playback Channel: 8-ch
- Total Bandwidth: 96Mbps
- Operating Power: DC12V, ≤ 12W (without HDD)
- Working Temperature: -14 °F – 131 °F / -10 °C – 55 °C
- Dimensions (W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
- Weight (without hard disk): ≤ 1 kg (2.2 lb)
Installation
For optimal performance, ensure that the cameras are installed in locations that provide a clear view of the monitored area. The system supports both indoor and outdoor installations, with weatherproof ratings of IP67 for the cameras.Usage
The ANNKE CCTV system allows users to monitor their property remotely via smartphones and tablets. It features advanced motion detection capabilities that classify human and vehicle movements, reducing false alerts. Users can receive real-time push notifications and email alerts when suspicious activity is detected.Other information
