General description

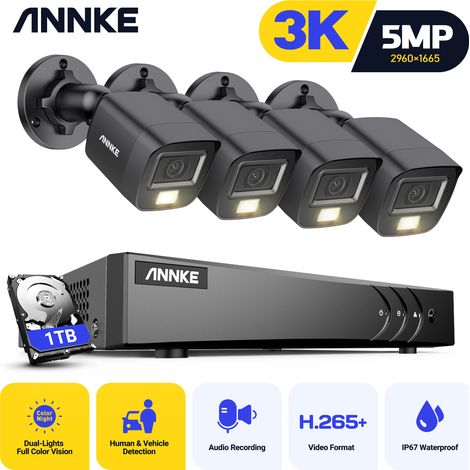

ANNKE 8CH Video Security System is a comprehensive surveillance solution featuring a 5MP H.265+ 5 in 1 DVR recorder and four high-quality 3K cameras. This kit is designed for outdoor use with waterproof protection, ensuring reliable performance in various weather conditions. The system supports remote monitoring via mobile devices, making it convenient for users to keep an eye on their property from anywhere.Technical specifications
- Video Compression: H.264+/H.264/H.265/H.265+
- Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channels in IP enhanced mode)
- Video Output: HDMI and VGA Up to 1080P
- Audio Input: 1-ch RCA, 8-ch via coaxial cable
- Audio Output: 1-ch RCA
- Supported Camera Types: HD TVI Input (3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p), AHD Input (4MP, 1080p, 720P), CVI Input (4MP, 1080p, 720P), CVBS Input, IP Video Input (6MP/5MP/4MP/3MP/1080P/720P)
- Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
- IPC Playback Resolution: Up to 6MP
- Max Playback Channel: 2-ch
- Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
- Hard Drive: 1 SATA interface, up to 10TB capacity
- Operating Power: DC12V, ≤ 12W (without HDD)
- Working Temperature: -14 °F – 131 °F / -10 °C – 55 °C
- Dimensions (W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
- Weight (without hard disk): ≤ 1 kg (2.2 lb)
Compatibility and accessories
- Includes 4 x 3K cameras
- 1TB HDD for storage
Installation
- Easy setup with included instructions
- Supports multiple camera types for flexible installation options
Usage
- Remote monitoring via iPhone, iPad, and Android devices
- Customizable motion detection zones for targeted surveillance
- Automatic overwrite feature for continuous recording
Other information
Secured by bank-level encryptions, ANNKE private protocols, unique activation password & 2-factor verification code for enhanced security.
