Description

General description

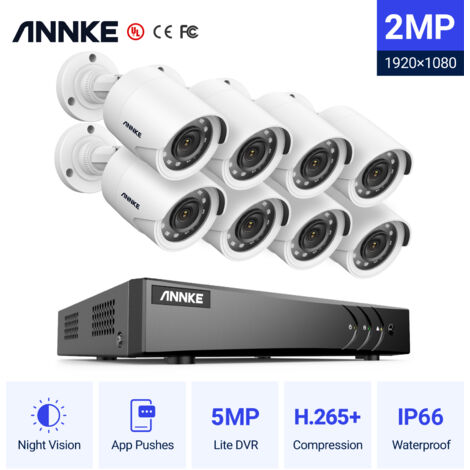

ANNKE 3K HD H.265+ Video Recorder Security Kit includes 8 high-definition 1080P HD TVI bullet security cameras equipped with Smart IR night vision and waterproof capabilities. This comprehensive security solution is designed to provide clear surveillance both day and night, ensuring your property is monitored effectively.

Technical specifications

  • Video Compression: H.264+/H.264/H.265/H.265+
  • Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channels when IP enhanced mode is on)
  • Video Output: HDMI and VGA up to 1080P
  • Audio Input: 1-ch RCA, 8-ch via coaxial cable
  • Audio Output: 1-ch RCA
  • Supported Camera Types: HD TVI (3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p), AHD (4MP, 1080p, 720P), CVI (4MP, 1080p, 720P), CVBS, IP Video (6MP/5MP/4MP/3MP/1080P/720P)
  • Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
  • IPC Playback Resolution: Up to 6MP
  • Max Playback Channel: 2-ch
  • Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
  • Motion Detection: Supports human and vehicle detection to reduce false alarms
  • Hard Drive: 1 SATA interface, up to 10TB capacity
  • Operating Power: DC12V, ≤ 12W (without HDD)
  • Working Temperature: -14 °F – 131 °F / -10 °C – 55 °C
  • Dimensions (W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • Weight (without hard disk): ≤ 1 kg (2.2 lb)
  • Camera

  • Image Sensor: 2MP CMOS
  • Video Resolution: 1920 (H) X 1080 (V)
  • Frame Rate: PAL: 1080p@25 fps, NTSC: 1080p@30 fps
  • Lens: 3.6 mm
  • Minimum Illumination: Color: 0.02 Lux @(F1.2, AGC On); 0 Lux with IR
  • Angle of View: 82.2°
  • Night Vision Distance: Up to 100 ft/30 m
  • Weatherproof Rating: IP66
  • Dimensions (L X W X H): 70 x 154.5 mm (2.76" x 6.08")
  • Weight: 0.88 lb (400 g)
  • Usage

    The ANNKE security kit is designed for both indoor and outdoor use, providing reliable surveillance in various environments. The cameras can capture high-definition images and video, ensuring that important details are recorded clearly. The system supports remote monitoring via mobile devices, allowing users to access live video feeds anytime, anywhere.

    Other information

    ANNKE Security KitANNKE Security KitANNKE Security KitANNKE Security KitANNKE Security Kit

    Features

    • Brand
      ANNKE
    • Width
      26 cm
    • Height
      6.6 cm
    • Depth
      17.8 cm
    • Weight
      6900 g
