General description

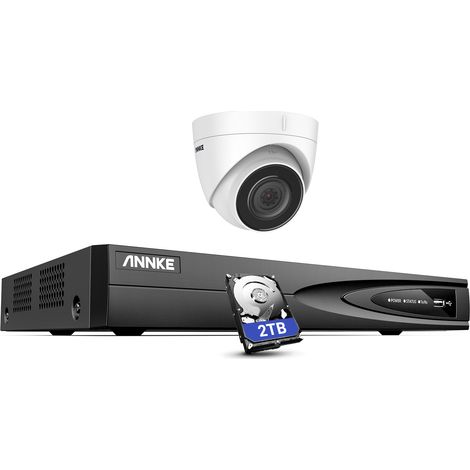

ANNKE Ultra HD 5MP POE Camera 4 Channel POE NVR CCTV Kit is designed for both outdoor and indoor use, providing reliable security with advanced features. This kit includes a 2TB HDD for ample storage, ensuring you can monitor your property effectively. The system is easy to set up and manage, making it ideal for home security.Technical specifications
- Camera Image Sensor: 1/3" Progressive Scan CMOS
- Main Stream Max. Frame Rate: 50Hz: 20 fps (2592 × 1944), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 20 fps (2592 × 1944, 2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Substream Max. Frame Rate: 50Hz: 25 fps (640 X 480, 640 X 360, 320 X 240); 60Hz: 30 fps (640 X 480, 640 X 360, 320 X 240)
- Video Compression: H.265+/H.265/H.264+/H.264
- Video Bitrate: 32 Kbps - 8 Mbps
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Lens: 2.8 mm

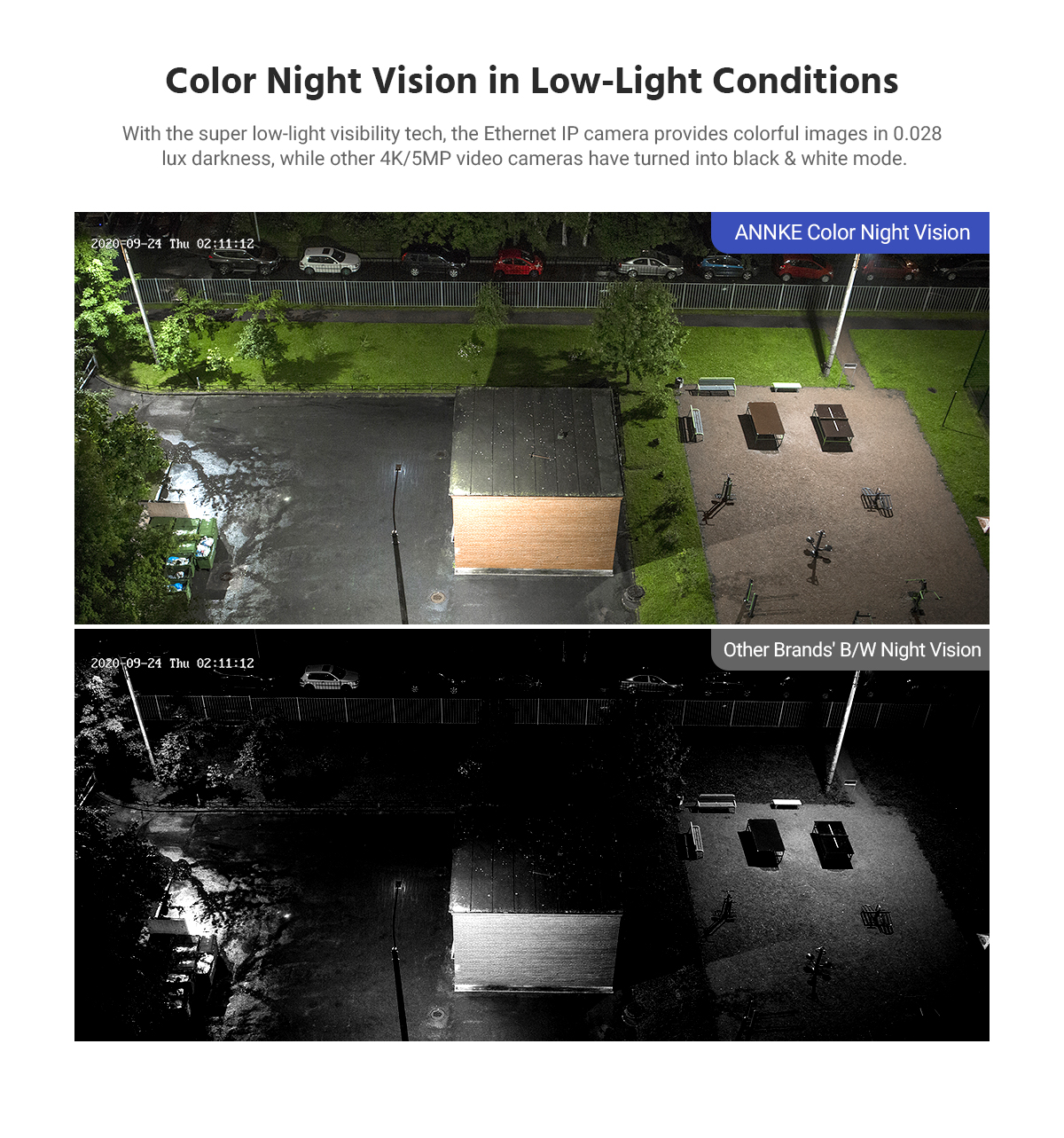

- Min. Illumination: Color: 0.028 Lux @(F2.0, AGC On)
- Angle of View: Horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115°
- Night Vision Distance: Up to 100 ft/30 m
- Operating Power: DC 12 V; PoE (802.3af)
- Dimensions (Camera): Ø110 mm X 85.3 mm (Ø4.3" X 3.4")
- Weight (Camera): 320 g (0.7 lb.)
- NVR Max Recording Resolution: Up to 12MP(4096 X 3072)@30fps
- NVR Dimensions: 12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
- NVR Weight: 2.2 lbs/1 kg
Compatibility and accessories
- Connectable to IP Cameras Supporting H.265+/H.265/H.264+/H.264 coding format
- Packaging Contents: NVR: 1, Power Adapter: 1, User's Manual For NVR: 1, Hard drive: 2TB, Camera: 1
Installation
- Plug and play setup for easy configuration and control
- Connect all PoE IP cameras to the NVR via Ethernet cables
Usage
- Remote monitoring via smartphone, tablet, and PC using the "Annke Vision" app
- Customizable motion detection and privacy mask features to minimize false alerts
