General description

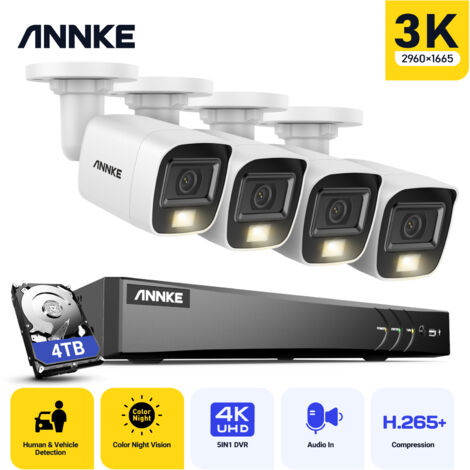

The ANNKE Wired Security Camera Kit includes a 4K DVR and 5MP cameras equipped with color night vision and built-in microphones. This comprehensive surveillance solution allows for remote access and features advanced motion detection capabilities.Technical specifications
- Camera Image Sensor: 3K CMOS Image sensor
- Video Resolution: 2960 (H) × 1665 (V) (16:9)
- Signal System: PAL/NTSC
- Frame Rate: TVI: 3K@20 fps, 4 MP@25 fps/30 fps; AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps; CVI: 4 MP@25 fps/30 fps; CVBS: PAL/NTSC
- Lens: 2.8mm
- Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Angle of View: Horizontal FOV: 107°, Vertical FOV: 64°, Diagonal FOV: 129°
- Supplement Light Type: 1 white light & 2 EXIR
- Supplement Light Range: IR: Up to 25 m, White Light: Up to 20 m
- Operating Power: 12 VDC ± 25%
- Consumption: Max. 2.9 W
- Operating Temperature: -40 °F – 140 °F / -40 °C – 60 °C
- Dimensions: 138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4" × 2.3")
- Weight: Approx. 155 g (0.34 lb.)
Compatibility and accessories
- Supports HD TVI, AHD, CVI, and CVBS output modes, compatible with most DVRs.
- Requires a DVR that supports AI for dual light functionality (compatible with DW81KD, DW61LD, DT81DXDVR).
Installation
- Easy installation without the need for an additional adapter box.
- Flexible gimbal mount allows for effortless adjustment of camera direction and field of view.
Usage
- Real-time monitoring and continuous recording when connected to a DVR.
- Audio recording capability through the built-in microphone, with the option to disable audio in the menu.
