General description

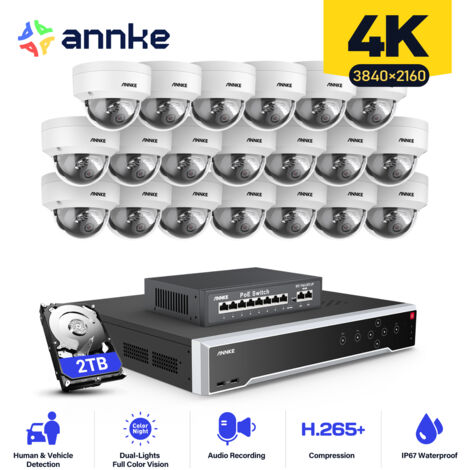

The ANNKE Wired Video Surveillance Kit includes a 32-channel NVR and 20 night vision cameras, designed for comprehensive outdoor security. It features advanced motion detection, email alerts, and remote access via an app or PC. With a 2TB hard drive, this system ensures reliable video storage and playback.Technical specifications
- NVR Resolution: Up to 12 MP
- Camera Resolution: 3840 × 2160 (8MP)
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Incoming Bandwidth: 256 Mbps
- Max Playback Resolution: Up to 12MP
- Max Recording Capacity: 48 TB (up to 12 TB per HDD)
- Camera Lens: 4 mm
- Field of View: Horizontal 78°, Vertical 38°, Diagonal 96°
- Minimum Illumination: Color: 0.005 Lux, B/W: 0 Lux with IR
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (Camera): Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
- Weight (Camera): 1.2 lb (550 g)
- Dimensions (NVR): 17.5" × 15.7" × 2.8" (445 mm × 400 mm × 71 mm)
- Weight (NVR): ≤11 lbs (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras (including 16 PoE channels)
- 4 SATA interfaces for hard drives
- Compatible with microSD/SDHC/SDXC cards up to 512 GB
Installation
- Easy installation with PoE (Power over Ethernet) support
- Includes 16 PoE ports for simplified wiring
Usage
- Remote access via app or PC for real-time monitoring
- Advanced motion detection with human and vehicle recognition
- Audio recording with built-in microphone for enhanced security
