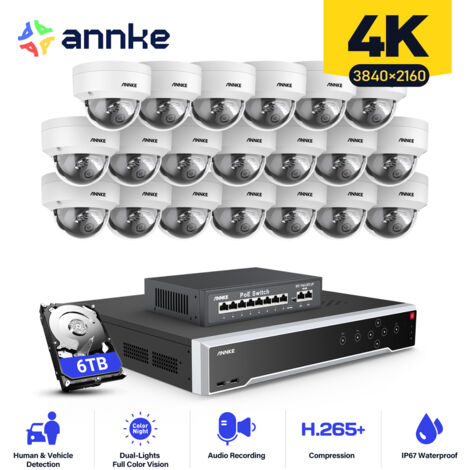

ANNKE Wired Video Surveillance Kit 32CH NVR 20×Night Vision Cameras, Email Alert, Motion Detection, Security System Outdoor Surveillance Camera APP/PC Remote 6TB

£7,136.97
Sold by ANNKE Security kit

Product information

Description

General description

ANNKE Wired Video Surveillance Kit includes a 32-channel NVR and 20 night vision cameras, providing a comprehensive security solution for both indoor and outdoor environments. With advanced features such as email alerts, motion detection, and remote access via an app or PC, this system ensures reliable monitoring and peace of mind.

Technical specifications

  • NVR:
  • Recording resolution: 12 MP
  • Camera inputs: 32 IP camera inputs (total incoming bandwidth of 256 Mbps)
  • Video compression: H.265+/H.265/H.264+/H.264/MPEG4
  • Video output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
  • Hard drive interfaces: 4 SATA interfaces, supports up to 12 TB per HDD (48 TB total)
  • Operating power: 100-240V
  • Power consumption: <20 W (without HDD and PoE)
  • Working temperature: 14 °F — 131 °F (-10 °C — +55 °C)
  • Dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
  • Weight: ≤11 lbs (5 kg)
  • Camera:
  • Image sensor: 1/2.4" Progressive Scan CMOS
  • Max resolution: 3840*2160 (8MP)
  • Lens: 4 mm
  • Min. illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Angle of view: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
  • Supplement light type: Smart Dual-Light, IR, White Light
  • Supplement light range: Up to 30 m
  • Operating power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
  • Operating temperature: -22 °F – 140 °F (-30 °C – 60 °C)
  • Dimensions: Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
  • Weight: 1.2 lb (550 g)

    • Compatibility and accessories

  • Supports up to 512 GB microSD/SDHC/SDXC storage
  • Includes 16 PoE ports

    • Installation

  • Easy installation with PoE support for simplified wiring
  • Metal and plastic housing for durability

    • Usage

  • Ideal for home and business security
  • Remote access via app or PC for real-time monitoring
  • Audio recording capability with built-in microphone
  • Advanced motion detection to minimize false alerts

    • Other information

    Features

    • Brand
      ANNKE
    • Width
      6.78 cm
    • Height
      7.1 cm
    • Weight
      6900 g
    • Material
      Plastic
