General description

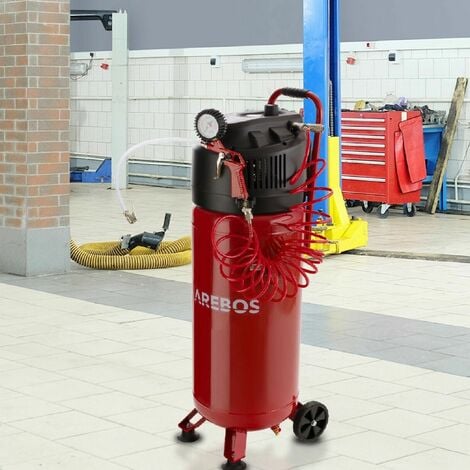

The AREBOS 50 L air compressor is ideal for various tasks requiring compressed air, such as inflating tires, blow-out tasks, or working with nails. Its elongated and narrow design makes it suitable for use in small spaces, and it requires minimal storage space. The compressor operates at a maximum pressure of 10 bar and comes with a comprehensive 13-piece pneumatic tool kit, including different adaptors for versatile applications.Technical specifications
- Model: AR-HE-LK150050S
- Power: 1500 W
- Volume: 50 liters
- Mains voltage: 230 V
- Frequency: 50 Hz
- Idling speed: 4000 rpm
- Intake power: approx. 220 l/min
- Overheating protection: max. 145 °C
- Protection class: IP20
- Power Plug: Type F (adapter for UK sockets required)
- Calibre: approx. 30 cm
- Height: approx. 98.5 cm
- Sound power level: 97 dB (A)
- Uncertainty K: 1.61 dB (A)
- Weight: 23.8 kg
- Operating mode: S3 25%
- Operating temperature: +5 °C - 40 °C
- Air flow at 1 bar: 130 l/min
- Air flow at 2 bar: 115 l/min
- Air flow at 3 bar: 100 l/min
- Air flow at 4 bar: 90 l/min
- Air flow at 5 bar: 82 l/min
- Air flow at 6 bar: 75 l/min
- Air flow at 7 bar: 65 l/min
- Air flow at 8 bar: 55 l/min
- Air flow at 9 bar: 50 l/min
- Air flow at 10 bar: 40 l/min
Compatibility and accessories
- 13-piece accessory set includes:

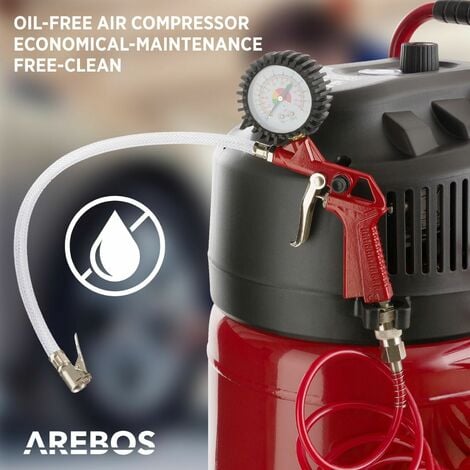

- 1x tire inflation gauge with pressure gauge and filling hose
- 1x blow gun
- 1x valve connector hose
- 3x nozzles
- 7x different adapters plus adapter attachment
Installation
- Includes all necessary components for setup:
- 2x wheels with axle bolt
- 4x lock nuts
- 2x screws
- 2x washers
- 2x stands
- 1x user manual
Usage
- Suitable for a variety of pneumatic tools, such as blow-out guns and tire inflators.

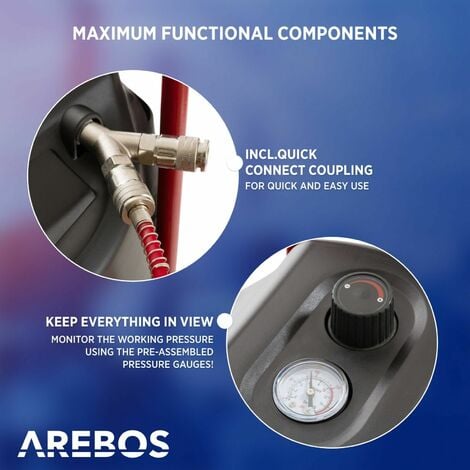

- Quick replacement of tools due to 2 quick-action couplings.
- Additional manometer for displaying boiler pressure.
- Built-in discharge valve for easy pressure reduction.
- Rubberized handle for convenient operation.
- Two castors for easy transport and stability.
Other information
- GS certified, meeting stringent quality requirements.
