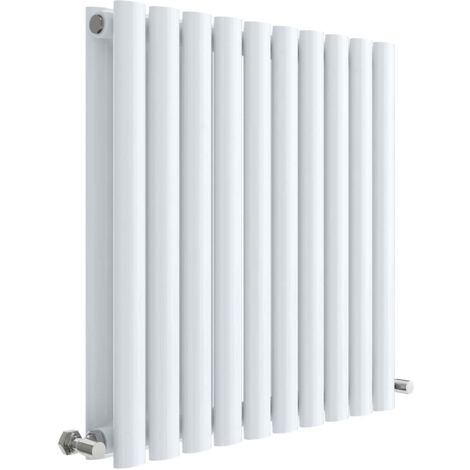

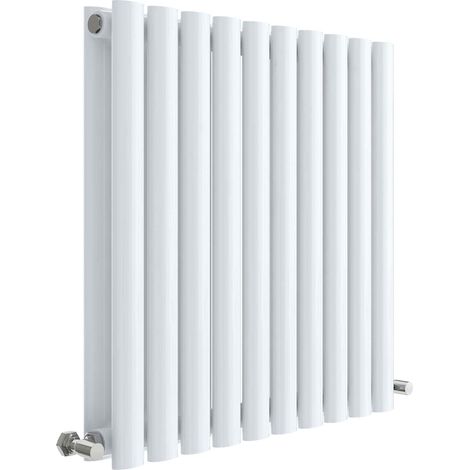

Nuie 600mm x 586mm Gloss White Revive Double Panel Radiator - HL338D

Sold by Heat & Plumb and 1 other seller

Product information

Description

General description

One of the most popular radiators on the market today, Hudson Reed's Revive model is defined by stylish oval tubes, offering a subtle step up from a typical panel radiator. The Revive is available in single panel or double panel formats, with a curated set of sizes to suit most applications. Choose from gloss white or anthracite finishes.

Technical specifications

Radiator Type: Designer Radiator

Configuration: Double

Design: Oval Tubes - Vertical

Height: 600mm

Width: 586mm

Depth: 78mm

Pipe Centres: 586mm + Valves

Wall to Front: 94mm

Wall to Pipe Centres: 51mm

Output (Watts) @ Delta 50: 647

Output (BTU) @ Delta 50: 2209

Orientation: Horizontal

Sections: 20

Material: Mild Steel

Colour: High Gloss White

Weight: 22.6 Kg

Manufacturer Part Number: HL338D

EAN Barcode: 5056211885191

Installation

Wall-mounted radiator - supplied complete with wall brackets and fixings

All tappings are 1/2" British Standard Pipe

Extra care must be taken during installation to avoid damaging the fittings

It is recommended that a suitable inhibitor is used when refilling the system after installation

Pipework should not be installed until receipt of the radiator

Usage

Suitable for use with standard central heating systems

Radiator valves are sold separately

Other information

CE and UKCA approvals

5 year guarantee from Hudson Reed against faulty workmanship or materials (excluding serviceable parts), provided installed, cared for, and used according to instructions

Features

Brand
ASPIRE
Colour
White
Power
647 W
NF certification
NF335
Warranty
5 year(s)
