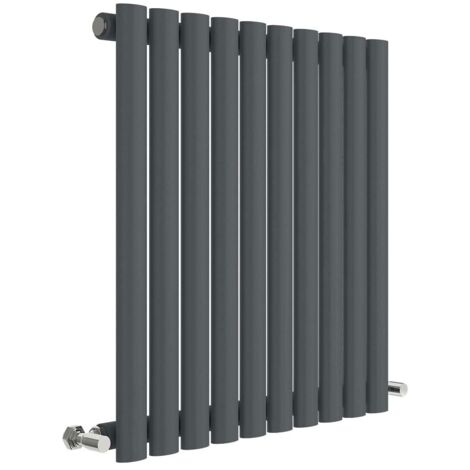

Nuie 600mm x 586mm Anthracite Revive Single Panel Radiator - HLA38

433 W - Anthracite - Horizontal

433 W - White - Horizontal

Sold by Heat & Plumb and 1 other seller

Product information

Description

General description

One of the most popular radiators on the market today, Hudson Reed's Revive model is defined by stylish oval tubes, offering a subtle step up from a typical panel radiator. The Revive is available in single panel or double panel formats, with a curated set of sizes to suit most applications. Choose from gloss white or anthracite finishes.

Technical specifications

Radiator Type: Designer Radiator

Configuration: Single

Design: Oval Tubes - Vertical

Height: 600mm

Width: 586mm

Depth: 55mm

Pipe Centres: 586mm + Valves

Wall to Front: 94mm

Wall to Pipe Centres: 51mm

Output (Watts) @ Delta 50: 433

Output (BTU) @ Delta 50: 1477

Orientation: Horizontal

Sections: 10

Material: Mild Steel

Colour: Anthracite

Weight: 13.1 Kg

EAN Barcode: 5056211885108

Manufacturer Part Number: HLA38

Installation

Wall-mounted radiator - supplied complete with wall brackets and fixings

All tappings are 1/2" British Standard Pipe

Extra care must be taken during installation to avoid damaging the fittings

It is recommended to use a suitable inhibitor when refilling the system after installation

Pipework should not be installed until receipt of the radiator

Usage

Suitable for use with standard central heating systems

Radiator valves are sold separately

Other information

CE and UKCA approvals

5 Year Guarantee against faulty workmanship or materials (excluding serviceable parts), provided they have been installed, cared for, and used in accordance with instructions

Features

Brand
ASPIRE
Length
59 cm
Width
58.6 cm
Height
600 mm
Weight
13.1 kg
