Automotive Actuator Fault Detector, QDB 2A Automotive Actuator Fault Detector 12 to 24V for Fuel Injector Solenoid Valve Detection and Ignition Coil

Features:

【Versatile Testing Capabilities】: This product can drive various parts, including ignition coils, fuel injectors, solenoid valves, fuel metering valves, idle speed stepper motors, instrument stepper motors, headlight direction-following stepper motors, and urea pump motors, to meet the testing needs of a variety of automobiles, making it suitable for a wide range of vehicles.

【High-Precision Simulation】: The Hall signal with adjustable output frequency, amplitude, and duty cycle can accurately simulate various duty cycle sensors such as air conditioning pressure sensors and air flow meters.

【Enhanced Safety Features】: The supply voltage varies from 12 to 24V, with reverse connection and overcurrent protection to ensure equipment safety during use.

【Wide Adjustment Range】: The electromagnetic coil drive current varies from 0 to 3.5A, the output frequency varies from 1Hz to 100kHz, the duty cycle adjustment is from 1% to 100%, and the adjustable voltage is from 1.25V to 11.5V, meeting various testing requirements.

【User-Friendly】: Easy to operate, all parameters are adjustable, making it easy to use even for those without professional knowledge.

Specifications:

Name: Ignition Coil Tester

Material: ABS

PWM Drive: Solenoid Valves/Ignition Coil/Solenoid Injector

Stepper Motor Drive: Idle Motor/Urea Pump Stepper Motor

PWM Signal Drive: 3-Wire Ignition Coil/3-Wire Urea Pump Motor/Electronic Fan

Signal Output Simulation: Air Conditioner Pressure Sensor/Rail Pressure Sensors/Flow Sensors

Multimeter Function: Resistance Measurement/Voltage Measurement

Input Power Supply: 9-26V/100W

Output Power: Max. Current 2.5A

VADJ Output: 1.25-14.5V, max current 1.5A

PWM Drive: Frequency 1-100KHz / Duty Cycle 0-100% / Max Current 3A

PWM Signal: Frequency 1-100KHz / Duty Cycle 0-100% / 1.25-14.5V VPP

Stepper Motor: Max. 1.5A

OTR: 0-55℃

Item Size: 165*96*26mm/6.50*3.78*1.02in

Package Size: 150*100*60mm/5.91*3.94*2.36in

Package Weight: 550g/1.21lb

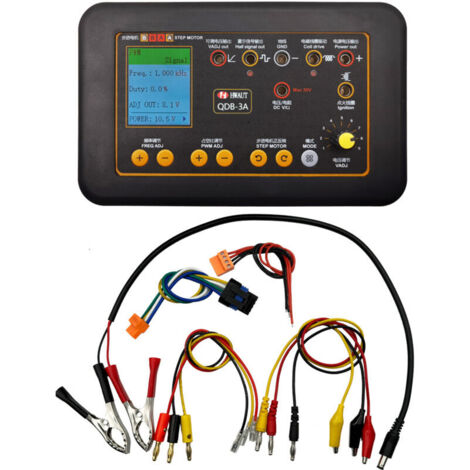

Packing List:

1*QDB-A3 Ignition Coil Tester

1*Power Cable

3*Test Connection Cables

3*Single Plugs

1*Idle Speed Stepper Motor Plug

1*Stepper Motor Welding Cable
