Product information
Description
Features and Benefits:
- Shower valve supplies water to 2 outlets
- 1/4 turn ceramic disc technology

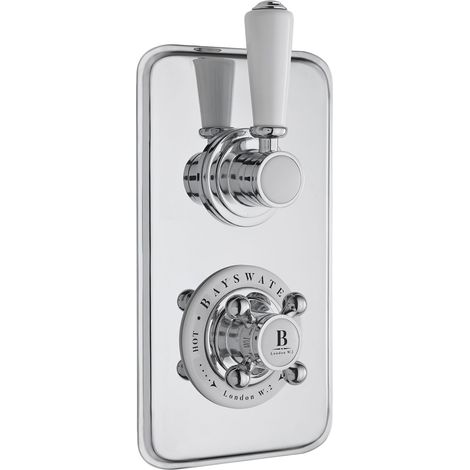

- Luxurious concealed shower valve with white indices and inserts
- Suitable for controlling 2 shower accessories - such as a fixed head and shower kit
- Dual controls - top lever diverts between accessories; bottom handle controls temperature
- Thermostatic shower valve produces accurate temperature control within +/- 1 degree, even if the water pressure fluctuates
- Full thermal protection in the event of cold supply failing
- Highly-resistant to calcium build-up - great for hard water areas
- Suitable for use with all plumbing systems: gravity, pumped, unvented, or combi boiler
- Excellent flow rates achieved even when the water pressure is low
- Fully reversible cartridge - can be switched 180 degrees if hot and cold supply positions do not match the valve
- Manufactured from solid brass to ensure the highest quality
- Guarantee: 20 Years (12 months on serviceable and moving parts, which are subject to normal wear and tear from the proof of purchase date)
| Shower Type | Thermostatic |
|---|---|
| Shower Valve Controls | 2 |
| Valve Position | Concealed |
| Valve Shape | Rectangular |
| Handle Type | Crosshead/Lever |
| Handle Shape | - |
| Outlets | 2 |
| Min Pressure | 0.1 Bar |
| Max Pressure | 4.0 Bar |
| Shower Valve Height | 210mm |
| Shower Valve Width | 120mm |
| Shower Valve Depth | 67-86mm |
| Inlet Connection Size | 1/2 BSP |
| Outlet Connection Size | - |
| Connection Centres | 150 |
| Material | Brass |
| Colour | White |
| Style | Traditional |
| Market | Domestic |
| Flow Rate - 0.1 Bar | 5.5 l/min |
| Flow Rate - 0.5 Bar | 14 l/min |
| Flow Rate - 1.0 Bar | 20 l/min |
| Flow Rate - 2.0 Bar | 29 l/min |
| Flow Rate - 3.0 Bar | 44 l/min |
| Brand | Bayswater |
| Collection | Traditional |
| EAN Barcode | 5055275889657 |
| Manufacturer Part Number(s) | BAYS104 |
Features
- BrandBAYSWATER
- ColourWhite
- Warranty1.66667 year(s)
- MaterialBrass
- Adapted for PRMNo
- With waste includedNo
- With anti-limescale functionNo
- Plumbing faucet featureDual control
- Intended use of the tapShower
- Hand shower includedNo
- Pull-out sprayNo
- Water savingNo
- Pipe thread size1/2" (15x21)
- Output thread1/2" (15x21)
- ShapeRectangular
- Height21 cm
- Mixer shower includesFixing
- Flow limiterNo
- Temperature limiterNo
- Tap activation mechanismMechanical
- Thermostatic mixerYes
- Weight3.5 kg
- Concealed tapYes
- Wall-mounted tapYes
- 38°C SafetyNo
- Tap head onlyYes
- Cool body thermostaticNo
- Type of installation methodFor mounting
- Tap typeDual-lever mixer
- Installation typeWall mounted
- ManoMano ReferenceME19134660
- MMID966242365636
- Product codeBAYS104
- EAN5055275889657
