BILLET GTB1749VK TURBO FOR FORD TOURNEO TRANSIT CUSTOM 2.2 TDCI FWD 786880 2011-

Application:

For Ford Tourneo Custom V362 Bus (F3) 2.2 TDCi 92KW 2012-2015 → FWD CYF4, CYFF
For Ford Tourneo Custom V362 Bus (F3) 2.2 TDCi 74KW 2012-2015 →FWD DRF4, DRFF, DRFG
For Ford Tourneo Custom V362 Bus (F3) 2.2 TDCi 114KW 2012-2015 → FWD CVFF
For Ford Transit Custom V362 Van (FY, FZ) 2.2 TDCi 74KW 2012 DRF4, DRFF, DRFG
For Ford Transit Custom V362 Van (FY, FZ) 2.2 TDCi 114KW 2012 CVFF
For Ford Transit Custom V362 Van (FY, FZ) 2.2 TDCi 92KW 2012-2016 CYF4, CYFF
For Ford Transit Custom V362 Bus (F3) 2.2 TDCi 92KW 2012-2015 → FWD CYF4, CYFF
For Ford Transit Custom V362 Bus (F3) 2.2 TDCi 74KW 2012-2016 → FWD DRF4, DRFF, DRFG
For Ford Transit Custom V362 Bus (F3) 2.2 TDCi 114KW 2012-2015 → FWD CVFF
For Ford Transit V363 Van (FCD, FDD) 2.2 TDCi 114KW 2013-2018 →FWD CVF5
For Ford Transit V363 Van (FCD, FDD) 2.2 TDCi 74KW 2013-2018 → FWD DRF5, DRFF, DRFG
For Ford Transit V363 Van (FCD, FDD) 2.2 TDCi 92KW 2013-2018 → FWD CY14, CYF5, CYFG, USF6
For Ford Transit V363 Bus (FAD, FBD) 2.2 TDCi 92KW 2013-2018 → FWD CY14, CYF5, CYFG, USF6
For Ford Transit V363 Platform/Chassis (FED, FFD) 2.2 TDCi 114KW 2013-2018
For Ford Transit V363 Bus (FAD, FBD) 2.2 TDCi 74KW 2013-2018 → FWD DRF5, DRFF, DRFG
For Ford Transit V363 Platform/Chassis (FED, FFD) 2.2 TDCi 74KW 2013-2018 →  DRF5, DRFF, DRFG
For Ford Transit V363 Platform/Chassis (FED, FFD) 2.2 TDCi 92KW 2013-2018 →  CY14, CYF5, CYFG, USF6
For Ford Transit Van (FA_ _) 2.2 TDCi 103KW 2007-2014 →  PGFA, PGFB, UHFA, UHFB, UHFC
For Ford Transit Bus (FD_ , FB , FS , FZ , FC _) 2.2 TDCi 74KW 2011-2014 →  DRFA, DRFB, DRFC, DRFD, DRFE
For Ford Transit Platform/Chassis (FM_ , FN , FF _) 2.2 TDCi 74KW 2011-2014 → FWD DRFA, DRFB, DRFC, DRFD, DRFE
For Ford Transit Platform/Chassis (FM_ , FN , FF _) 2.2 TDCi 92KW 2011-2014 → FWD CYFA, CYFB, CYFC, CYFD
For Ford Transit Platform/Chassis (FM_ , FN , FF _) 2.2 TDCi 103KW 2007-2014  PGFA, PGFB, UHFA, UHFB, UHFC
For Ford Transit Tourneo Bus 2.2 TDCi 103KW 2007-2014
For Ford Transit Bus (FD_ , FB , FS , FZ , FC _) 2.2 TDCi 92KW 2011-2014 → FWD CYFA, CYFB, CYFC, CYFD
For Ford Transit Bus (FD_ , FB , FS , FZ , FC _) 2.2 TDCi 103KW 2007-2014 → PGFA, PGFB, UHFA, UHFB, UHFC
For Ford Transit TOURNEO Bus 2.2 92KW 2011-2014 →FWD CYFA, CYFB, CYFC, CYFD
For Ford Transit Van (FA_ _) 2.2 TDCi 74KW 2011-2014 →  DRFA, DRFB, DRFC, DRFD, DRFE
For Ford Transit Van (FA_ _) 2.2 TDCi 92KW 2011-2014 → CYFA, CYFB, CYFC, CYFD

Turbo Model: GTB1749VK
Engine: Duratorq EURO 5
Cooling Type: Oil Cooling
Fuel Type:  Diesel

Compressor Wheel：Billet Compressor Wheel

Bearing Type: Floating Bearing
Universal Fitment: No
Finish: Matte
Actuator Type: Electronic Actuator
Turbo Type: Variable Geometry
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size: 31*29*34cm
Package Weight: 8.45kg

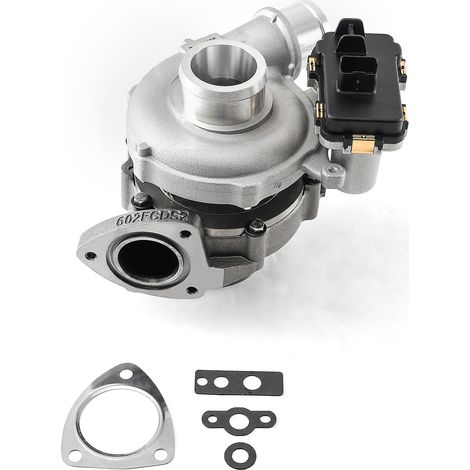

Package Included:

1x Turbocharger
2x Oil Gaskets
2x Flange Gaskets

6x Stud Bolts & Nuts

2x Oil / Water Port Gaskets

2x Oil Pipe Bolts
1x Manual
1x Brochure
1x Sticker

Features:

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR
2.  G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer
