General description

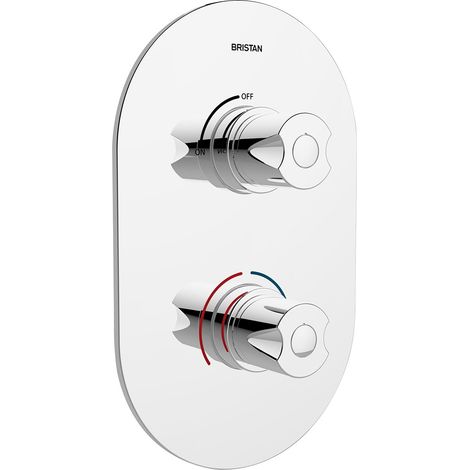

The Bristan Artisan Recessed Concealed Shower Valve Dual Handle - Chrome is part of Bristan's exclusive Artisan range, designed to provide a modern and practical solution for your shower needs. This thermostatic mixer valve allows you to control both the flow and temperature of the water, ensuring a comfortable shower experience without sudden temperature changes. Finished in polished chrome, it not only looks sleek but is also easy to clean, making it a timeless addition to any bathroom.Technical specifications
- Shower Type: Mixer
- Temperature Control: Thermostatic
- Operation: Knob
- Valve Position: Concealed
- Valve Controls: 2
- Valve Outlets: 1
- Backplate Shape: Oval
- Inlet Connection Size: 15mm
- Outlet Connection Size: 15mm
- Connection Centres: 150mm
- Valve Height: 265mm
- Valve Width: 165mm
- Valve Depth: 45mm
- Minimum Pressure: 0.2 Bar
- System Suitability: All Plumbing Systems
- Valve Material: Brass
- Colour/Finish: Chrome
- Style: Modern
- Flow Rate @ 0.2 Bar: 7.50 Litres/Min
- Flow Rate @ 0.5 Bar: 14.10 Litres/Min
- Flow Rate @ 1.0 Bar: 21.00 Litres/Min
- Flow Rate @ 2.0 Bar: 30.50 Litres/Min
- Flow Rate @ 3.0 Bar: 37.30 Litres/Min
- Flow Rate @ 5.0 Bar: 48.20 Litres/Min
- WRAS Approved: Yes
- EAN Barcode: 5014868029078
- Manufacturer Part Number: AR3 SHCVO C
Compatibility and accessories
Ensure compatibility with your existing shower fittings before ordering. You can choose the shower head, kit, or handset you wish to pair with this valve for a coordinated look.
Installation
The fitting depth required for installation, including plasterboard and tiles, is between 45mm and 75mm. This valve is designed to fit in any UK wall cavity, requiring only a 35mm deep cavity space. It is fully serviceable from the front, making maintenance easier.
Usage
This shower valve is ideal for controlling water flow and temperature, providing a comfortable shower experience. It operates effectively from a minimum pressure of 0.2 bar up to 5 bar, making it suitable for low-pressure systems.
Other information
The product comes with a lifetime guarantee on parts, with 1 year on labor and 3 years on Gold, Painted, and other Special Finishes.
