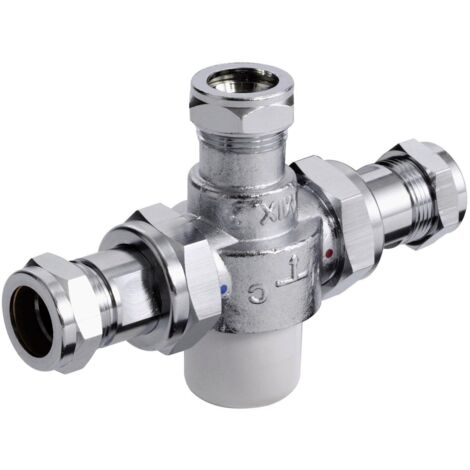

Bristan Commercial MT753 Thermostatic Mixing Valve 22mm - Chrome

Sold by Heat & Plumb

You may also like

Compare with similar items

Product information

Description

General description

The Bristan Commercial MT753 Thermostatic Mixing Valve, 22mm, Chrome is a high-quality mixing valve from the renowned Commercial range by Bristan. Designed to enhance both style and functionality in your bathroom, this valve is manufactured to the highest standards, ensuring reliability and performance.

Technical specifications

  • Height: 106mm
  • Width: 165mm
  • Inlet Connection Size: 22mm
  • Outlet Connection Size: 22mm
  • Maximum Hot Temperature: 80°C
  • Minimum Working Pressure: 0.2 Bar
  • Maximum Working Pressure: 5.0 Bar
  • Flow Rate @ 0.2 Bar: 17 l/min
  • Flow Rate @ 0.5 Bar: 28 l/min
  • Flow Rate @ 1.0 Bar: 42 l/min
  • Flow Rate @ 2.0 Bar: 59 l/min
  • Flow Rate @ 3.0 Bar: 73 l/min
  • Flow Rate @ 5.0 Bar: 95 l/min
  • Material: Brass
  • Colour: Chrome
  • Brand: Bristan
  • Collection: Commercial
  • Style: Modern
  • WRAS Approval Number: 2011903
  • TMV3 Approval Number: NSF2257/0521
  • Other information

    This mixing valve is Part G compliant and suitable for high and low pressure bath fill applications. It features an automatic shutoff in the event of hot or cold water supply failure, along with check valves and serviceable filters as standard. The product comes with a 1-year guarantee from the manufacturer.

    Features

    • Brand
      BRISTAN
    • Length
      10.6 cm
    • Width
      16.5 cm
    • Height
      10.6 cm
    • Material
      Brass
