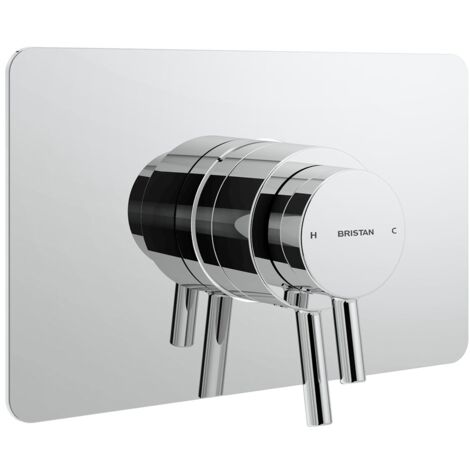

Bristan Prism Concealed Concentric Chrome Valve Shower Mixer PM2 CSHCVO C

Name: Bristan Prism Concealed Concentric Chrome Valve Shower Mixer PM2 CSHCVO C
Brand: BRISTAN
SKU: PM2-CSHCVO-C
Price: 511.95 GBP
Availability: InStock

~~£516.90~~

Sold by Wholesale Domestic

Product information

Description

General description

This Bristan Prism Concealed Concentric Chrome Valve Shower Mixer is designed for modern bathrooms, featuring a sleek chrome finish and a rectangular shape. It is equipped with a thermostatic cartridge that has a preset temperature stop at 42°C, ensuring a safe and comfortable shower experience. The valve is suitable for installation in any UK wall cavity, requiring only a 35mm deep cavity space.

Technical specifications

Model Number: PM2-CSHCVO-C

Inlet Connection Size: 15mm

Outlet Connection Size: 1/2 BSP

Connection Centres: 168mm

Minimum Pressure: 0.2 Bar

Maximum Pressure: 5.0 Bar

Shower Valve Height: 140mm

Shower Valve Width: 220mm

Shower Valve Depth: 63mm

Dimensions: 220mm x 140mm x 63mm

Material: Brass

Colour: Chrome

Flow Rate at 0.2 Bar: With Flow Regulators: 3.4 l/min, Without Flow Regulators: 9.0 l/min

Flow Rate at 0.5 Bar: With Flow Regulators: 5.4 l/min, Without Flow Regulators: 15.5 l/min

Flow Rate at 1.0 Bar: With Flow Regulators: 7.8 l/min, Without Flow Regulators: 22.5 l/min

Flow Rate at 2.0 Bar: With Flow Regulators: 11.3 l/min, Without Flow Regulators: 31.8 l/min

Flow Rate at 3.0 Bar: With Flow Regulators: 11.1 l/min, Without Flow Regulators: 39 l/min

Flow Rate at 5.0 Bar: With Flow Regulators: 11.4 l/min, Without Flow Regulators: 50.3 l/min

Compatibility and accessories

Supplied with 2 x 8L/min flow regulators

Supplied with Easyfit wall outlet

Installation

Designed to fit in any UK wall cavity

Requires only a 35mm deep cavity space

Usage

Controls: Twin handle valve

Shower Type: Thermostatic Shower Valve

Shower Valve Outlet: 1

Shower Valve Position: Concealed

Other information

Approved and tested under WRAS

Guarantee: 5 years including parts (1 year on labour and 3 years on Gold, Painted and other Special Finishes)

EAN Barcode: 5014868043074

Features

Brand
BRISTAN
Length
22 cm
Width
22 cm
Height
14 cm
Weight
5 kg
