1/2

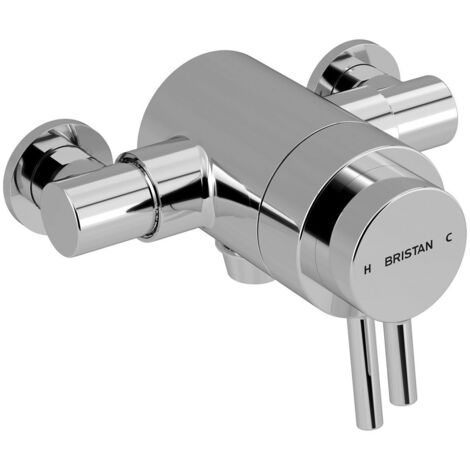

Bristan Prism Exposed Concentric Chrome Shower Mixer Valve PM2 CSHXVO C

Name: Bristan Prism Exposed Concentric Chrome Shower Mixer Valve PM2 CSHXVO C
Brand: BRISTAN
SKU: PM2 CSHXVO C
Price: 363.6 GBP
Availability: InStock

~~£497.50~~

Sold by BuyaParcel and 2 other sellers

Product information

Description

General description

The Bristan Prism Exposed Concentric Chrome Shower Mixer Valve PM2 CSHXVO C is a modern and stylish shower valve designed for easy installation and efficient water flow. It features adjustable inlets for compatibility with existing pipework and a thermostatic cartridge for precise temperature control.

Technical specifications

Model Number: PM2-CSHXVO-C

Inlet Connection Size: 15mm

Outlet Connection Size: 1/2 BSP

Connection Centres: 136-158mm

Minimum Pressure: 0.2 Bar

Maximum Pressure: 5.0 Bar

Shower Valve Depth: 130mm

Dimensions: 16cm x 13cm x 14cm

Material: Brass

Colour: Chrome

Flow Rate @ 0.2 Bar With Flow Regulators: 4.5 l/min

Flow Rate @ 0.5 Bar With Flow Regulators: 11.8 l/min

Flow Rate @ 1.0 Bar With Flow Regulators: 14.1 l/min

Flow Rate @ 2.0 Bar With Flow Regulators: 13.8 l/min

Flow Rate @ 3.0 Bar With Flow Regulators: 13.6 l/min

Flow Rate @ 5.0 Bar With Flow Regulators: 10.6 l/min

Installation

Easy replacement with adjustable inlets allows for installation on existing pipework centres between 136mm and 158mm.

Usage

This thermostatic shower valve controls water flow to one outlet and features a preset temperature stop at 42°C for safety and comfort.

Other information

Approved and tested under WRAS. Guarantee: 5 years including parts (1 year on labour and 3 years on Gold, Painted and other Special Finishes). EAN Barcode: 5014868043050.

Features

Brand
BRISTAN
Colour
Copper
Material
Brass
Intended use of the tap
Shower
Hand shower included
Yes
Shape
Rounded
Height
13 cm
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Number of outlets
1
Max pressure
5 bar
Pcs per pack
1
Wall-mounted tap
Yes
Tap head only
Yes
Type of installation method
For mounting
Tap type
Single-lever mixer
ManoMano Reference
ME13061122
MMID
114309642522
Product code
PM2 CSHXVO C
EAN
5014868043050
