Name: Bristan Prism Exp Seq Top Valve Chrome Shower Mixer PM2 SQSHXTVO C
Brand: BRISTAN
SKU: zf4172728pm2sqshxtvoc
Price: 298.43 GBP
Availability: InStock

Product information

Description

General description

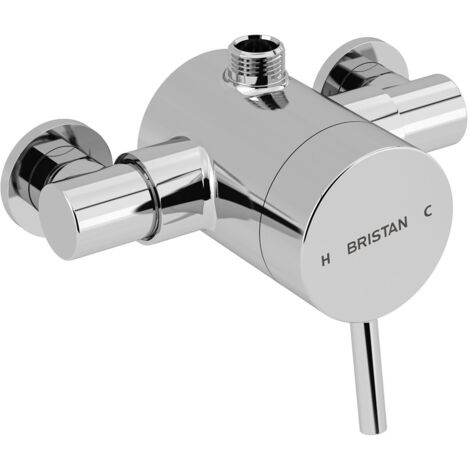

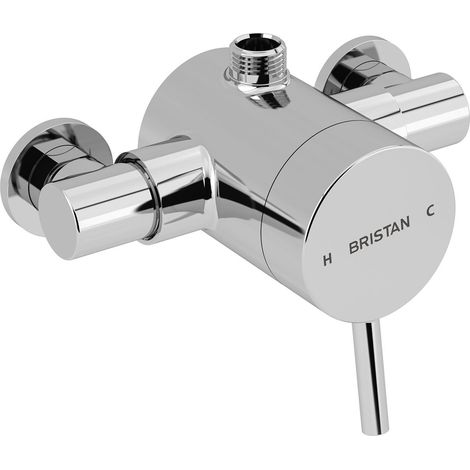

The Bristan Prism Exp Seq Top Valve Chrome Shower Mixer (Model Number: PM2-SQSHXTVO-C) is a modern and stylish shower valve designed for easy installation and efficient water flow. It features a thermostatic cartridge with a preset temperature stop at 42°C, ensuring a safe and comfortable shower experience.

Technical specifications

Dimensions: 16cm x 11cm x 14cm

Inlet Connection Size: 15mm

Outlet Connection Size: 15mm

Connection Centres: 136mm - 158mm

Minimum Pressure: 0.1 Bar

Maximum Pressure: 5.0 Bar

Shower Valve Depth: 110mm

Flow Rate @ 0.1 Bar: With Flow Regulators: 3.9 l/min, Without Flow Regulators: 4.8 l/min

Flow Rate @ 0.5 Bar: With Flow Regulators: 13.1 l/min, Without Flow Regulators: 17.4 l/min

Flow Rate @ 1.0 Bar: With Flow Regulators: 12.5 l/min, Without Flow Regulators: 24.7 l/min

Flow Rate @ 2.0 Bar: With Flow Regulators: 13.2 l/min, Without Flow Regulators: 34.9 l/min

Flow Rate @ 3.0 Bar: With Flow Regulators: 13.6 l/min, Without Flow Regulators: 42.8 l/min

Flow Rate @ 5.0 Bar: With Flow Regulators: 13.3 l/min, Without Flow Regulators: 55.2 l/min

Material: Brass

Colour: Chrome

Brand: Bristan

Collection: Prism

Style: Modern

EAN Barcode: 5014868044064

Compatibility and accessories

Compatible with existing pipework centres between 136mm and 158mm

Supplied with 2 x 8L/min flow regulators

Installation

Easy replacement with adjustable inlets

Usage

Controls 1 shower outlet

Thermostatic shower valve for consistent temperature

Other information

Chrome plated to BS EN 248

Approved and tested under WRAS

Guarantee: 5 years including parts (1 year on labour and 3 years on Gold, Painted and other Special Finishes)

Features

Brand
BRISTAN
Colour
Grey
NF certification
NF136
Warranty
5 year(s)
Material
Brass

Bristan Prism Exp Seq Top Valve Chrome Shower Mixer PM2 SQSHXTVO C
