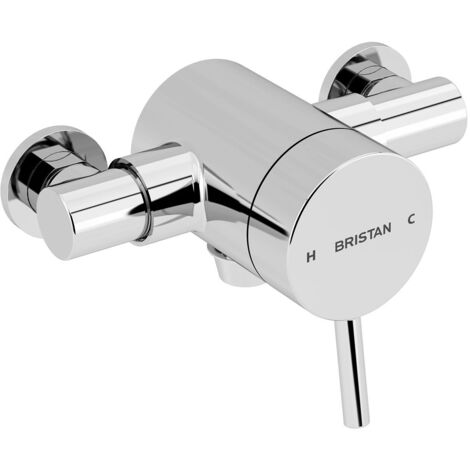

Bristan Prism Exp Seq Chrome Valve Shower Mixer PM2 SQSHXVO C

Name: Bristan Prism Exp Seq Chrome Valve Shower Mixer PM2 SQSHXVO C
Brand: BRISTAN
SKU: PM2 SQSHXVO C
Price: 298.43 GBP
Availability: InStock

~~£406.67~~

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by BuyaParcel and 2 other sellers

Product information

Description

General description

The Bristan Prism Exp Seq Chrome Valve Shower Mixer PM2 SQSHXVO C is a modern thermostatic shower valve designed for easy installation and efficient water flow. It features adjustable inlet connections, allowing compatibility with existing pipework centers between 136mm and 158mm. The valve is equipped with a thermostatic cartridge that has a preset temperature stop at 42°C, ensuring a safe and comfortable shower experience.

Technical specifications

Inlet connection size: 15mm

Outlet connection size: 15mm

Connection centers: 136-158mm

Minimum pressure: 0.2 Bar

Maximum pressure: 5.0 Bar

Shower valve depth: 110 mm

Dimensions: 16cm x 11cm x 14cm

Flow rate @ 0.2 Bar with flow regulators: 8.8 l/min

Flow rate @ 0.5 Bar with flow regulators: 13.5 l/min

Flow rate @ 1.0 Bar with flow regulators: 12.6 l/min

Flow rate @ 2.0 Bar with flow regulators: 13.6 l/min

Flow rate @ 3.0 Bar with flow regulators: 14.5 l/min

Flow rate @ 5.0 Bar with flow regulators: 13.3 l/min

Compatibility and accessories

Supplied with 2 x 8L/min flow regulators

Other information

Approved and tested under WRAS (Approval Number: 2205903)

Guarantee: 5 years including parts (1 year on labour and 3 years on Gold, Painted and other Special Finishes)

Brand: Bristan

EAN Barcode: 5014868043036

Model Number: PM2-SQSHXVO-C

Features

Brand
BRISTAN
Colour
Grey
Material
Brass
Intended use of the tap
Shower
Shape
Rounded
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Number of outlets
1
Number of jets
1
Weight
5 kg
Pcs per pack
1
Wall-mounted tap
Yes
Tap head only
Yes
Type of installation method
For mounting
Tap type
Single-lever mixer
ManoMano Reference
ME13061132
MMID
286850784940
Product code
PM2 SQSHXVO C
EAN
5014868043036
