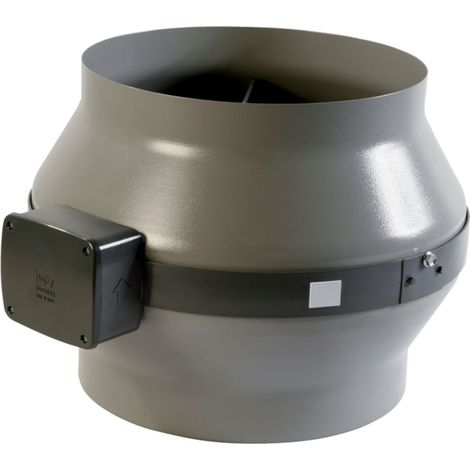

Centrifugal Inline Fan CA Q MD E 150

Product out of stock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Product information

Description

General description

Centrifugal Inline Fan CA Q MD E 150 is designed for efficient air movement in various applications. This fan features a robust construction with a hammered grey finish, making it suitable for both residential and commercial use.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal width: 150 mm

Speeds: 3

Motor wattage: 26 / 47 / 85 W

Current consumption: 0.22 / 0.3 / 0.4 A

Revolutions per minute: 1160 / 1725 / 2340

Airflow rate: 230 / 350 / 470 m3/h

Total pressure Pmax: 121.1 / 248.2 / 327 Pa

Max. sound pressure level Lp-3m: 48.1 dB(A)

Max. temperature for continuous operation: 50°C

Protection code: IP44

Insulation class: II

Diameter duct connection: 147 mm

Diameter without terminal box: 255 mm

Diameter with terminal box: 330 mm

Total depth: 239 mm

Weight: 2.98 kg

Motor type: Ball-bearing external rotor motor

Other information

Includes mounting brackets for easy installation

Features

Brand
VORTICE
Colour
Grey
Width
15 cm
Intended use
Indoor
IP rating
IP44
Material
Polyester
Number of speeds
3
Weight
3 kg
ManoMano Reference
ME2601215
MMID
407537239298
Product code
0000016152
EAN
8010300161525
