1/5

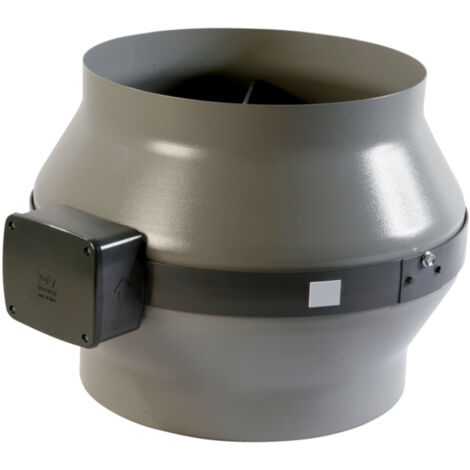

Centrifugal Inline Fan CA MD E 150

Product information

Description

General description

Centrifugal Inline Fan CA MD E 150 is designed for efficient air movement in various applications. It features a robust construction with a hammered grey finish, making it suitable for both residential and commercial use.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal width: 150 mm

Speeds: 3

Motor wattage: 26 / 47 / 85 W

Current consumption: 0.22 / 0.3 / 0.38 A

Revolutions per minute: 1160 / 1725 / 2650

Airflow rate: 230 / 350 / 535 m3/h

Total pressure Pmax: 121 / 248.7 / 435.1 Pa

Max. sound pressure level Lp-3m: 53.2 dB(A)

Max. temperature for continuous operation: 50°C

Protection code: IP44

Insulation class: II

Diameter duct connection: 147 mm

Diameter without terminal box: 347 mm

Diameter with terminal box: 424 mm

Total depth: 275 mm

Weight: 4.9 kg

Other information

Thermal overload protection

Ball-bearing external rotor motor
