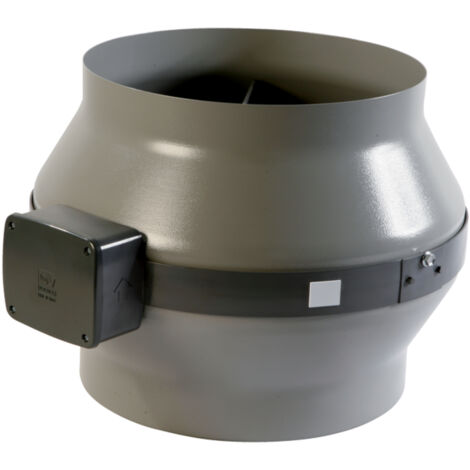

Centrifugal Inline Fan CA MD 125

Product out of stock

Product information

Description

General description

The Centrifugal Inline Fan CA MD 125 is designed for efficient air movement in various applications. It features a robust construction with a hammered grey finish, making it suitable for both residential and commercial use.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal width: 125 mm

Speeds: 3

Motor wattage: 26 / 47 / 85 W

Current consumption: 0.22 / 0.3 / 0.4 A

Revolutions per minute: 1130 / 1685 / 2300

Airflow rate: 210 / 315 / 445 m3/h

Total pressure Pmax: 172.6 / 301.3 / 361.4 Pa

Max. sound pressure level Lp-3m: 45.9 dB(A)

Max. temperature for continuous operation: 50°C

Protection code: IP44

Insulation class: II

Diameter duct connection: 122 mm

Diameter without terminal box: 225 mm

Diameter with terminal box: 330 mm

Total depth: 239 mm

Weight: 3 kg

Motor type: Ball-bearing external rotor motor

Other information

Includes mounting brackets for easy installation

Thermal overload protection for enhanced safety

Features

Brand
VORTICE
Colour
Grey
Shape
Cylindrical
IP rating
IP44
Material
Steel
With timer
Yes
Integrated non-return valve
Yes
Duct diameter
125 mm
Height
24 cm
Noise level
45.9 dB
Pcs per pack
1
Ball bearings
Yes
Type of lawn aerator
Classic
ManoMano Reference
ME4705454
MMID
285570338912
Product code
16151
EAN
8010300161518
