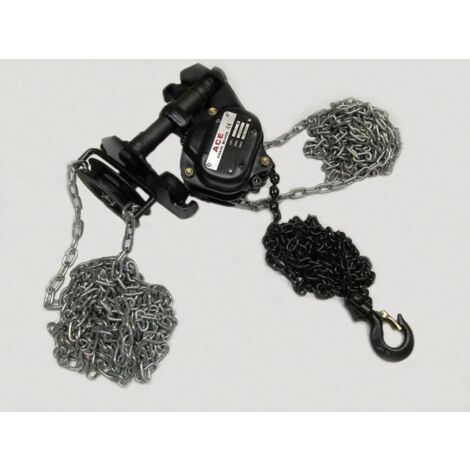

Chain Block and Geared Trolley Combination 1T 6M (Beam Girder Lift Tackle Manual)

Name: Chain Block and Geared Trolley Combination 1T 6M (Beam Girder Lift Tackle Manual)
Brand: SECUREFIX DIRECT
SKU: SFCCBGT13
Price: 135 GBP
Availability: InStock

Sold by SecureFix Direct

Often purchased together

Product information

Description

General description

Combination Chain Block & Geared Trolley is an excellent all-in-one product designed for ease and convenience in lifting applications. The geared trolley attaches to steel beams, providing an adjustable lifting point for the chain block. This combination allows for easy and precise movement due to the hand chain and gear mechanism. The chain block features a chain guide for smooth operation and is constructed from durable steel for ease of use and transport. Safety hooks are drop forged and heat treated to ensure safety and durability.

Technical specifications

Safe Working Load: 1 Ton (1000 KGS)

Lift Height: 6 Metres

Hand Chain Effective Working Length (EWL): 5.8M

Chain Falls: 1

Load Chain Diameter: 6MM

Trolley Dimensions: 310MM (Length) x 250MM (Width)

Overall Height: 330MM

Recommended Beam Size: 60MM-146MM

Other information

Conforms to: BS EN 13157: 2004+A1: 2009

Supplied with Test Certificate (sent via email)

Please note: Colour may vary; contact for black finish

Features

Brand
SECUREFIX DIRECT
Maximum load
1000 kg
Cable diameter
6 mm
Height
33 cm
Material
Two-material
power supply
Manual
ManoMano Reference
ME27140450
MMID
704694196717
Product code
SFCCBGT13
EAN
0600988503472

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
