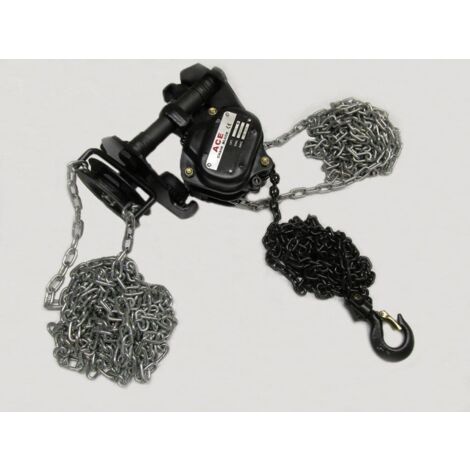

Chain Block and Geared Trolley Combination 2T 3M (Beam Girder Lift Tackle Manual)

Name: Chain Block and Geared Trolley Combination 2T 3M (Beam Girder Lift Tackle Manual)
Brand: SECUREFIX DIRECT
SKU: SFCCBGT16
Price: 160 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Combination Chain Block & Geared Trolley is an all-in-one lifting solution designed for ease and convenience. This product features a geared trolley that attaches to steel beams, providing an adjustable lifting point for the chain block. The combination allows for smooth operation and precise movement, making it ideal for various lifting tasks.

Technical specifications

Safe Working Load: 2 Ton (2000 KGS)

Lift Height: 3 Metres (10 Feet)

Hand Chain Effective Working Length (EWL): 2.7 M

Number of Chain Falls: 2

Load Chain Diameter: 6 MM

Trolley Dimensions: 275 MM (Length) x 340 MM (Width)

Overall Height: 340 MM

Recommended Beam Size: 80 MM - 168 MM

Other information

Conforms to: BS EN 13157: 2004+A1: 2009

Supplied with Test Certificate (sent via email)

Safety hooks are drop forged and heat treated for durability

Color may vary; contact for specific color requests

Features

Brand
SECUREFIX DIRECT
Weight
2000 kg
Material
Steel
Maximum load
2000 kg
power supply
Manual

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
