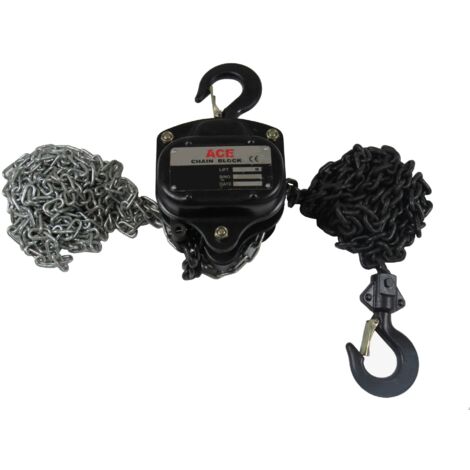

Chain Block & Tackle 10T 6M (Lifting Hoist Ton Metre)

Name: Chain Block & Tackle 10T 6M (Lifting Hoist Ton Metre)
Brand: SECUREFIX DIRECT
SKU: SFACECB106
Price: 478.99 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Chain Block & Tackle 10T 6M is a robust lifting hoist designed for heavy-duty applications. With a safe working load of 10 tons (10,000 kg) and a lifting height of 6 meters, this chain block is ideal for various lifting tasks. It features a lightweight steel construction for easy transport and operation, along with a chain guide that ensures smooth chain movement.

Technical specifications

Safe Working Load: 10 Ton (10,000 KG)

Lift Height: 6 Metres

Minimum Distance Between Hooks: 700 MM

Chain Falls: 4

Load Chain Diameter: 10 MM

Hand Chain Length: 5.7 Metres

Overall Max Length: 6.8 Metres

Chain Overhang: 12 Metres

Chain Block Height: 460 MM

Lower Hook + Bracket Length: 390 MM

Lower Hook / Top Hook Opening: 49 MM

Max Pin Size For Top Hook + Lower Hook: 73 MM

Factor Of Safety: 4:1

Other information

Conforms to: BS EN 13157: 2004+A1: 2009

Safety hooks are drop forged and heat treated for enhanced safety and durability.

Supplied with a test certificate (sent via email).

Please note that the color may vary; contact for a black finish if required.

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Maximum load
10000 kg
Supplied with hauling pulley
Yes
Height
46 cm

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
