General description

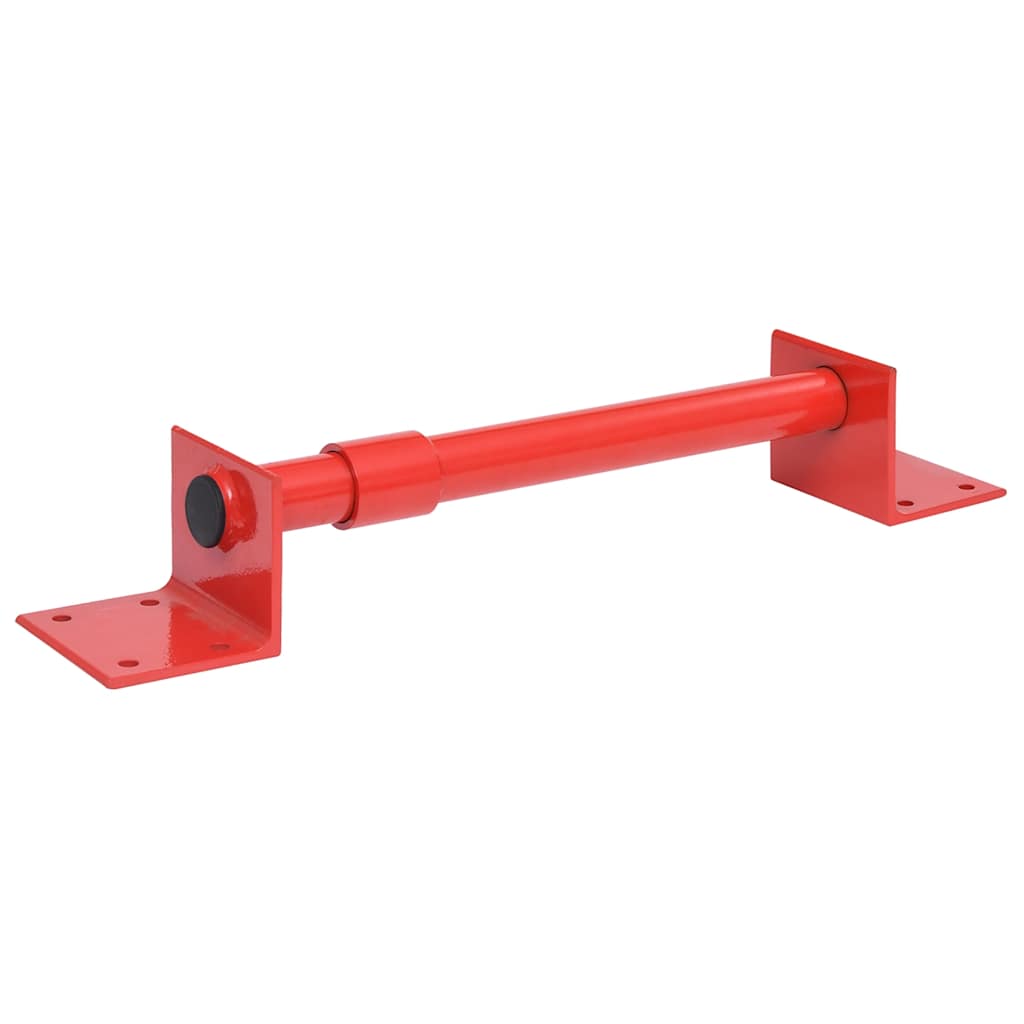

This wall bracket is the ideal attachment for the swivel arms of wire rope hoists. Made of quality steel, this boom bracket can support a maximum load of 1000 kg, providing the necessary distance from the wall to retain a swivel range of almost 180°. The pre-drilled holes allow for easy attachment directly to the wall, and mounting screws are included in the delivery.Technical specifications
- Colour: Red
- Material: Steel
- Total length: 78 cm
- Inside length: 52 cm
- Steel thickness: 3 mm
- Maximum load: 1000 kg
- Assembly required: Yes
- Delivery contains: 1 x Wall bracket, 8 x Screw
Installation
The wall bracket must be fixed to a solid supporting structure using 8 M12×120 mm expansion screws. Ensure that the wall is made of solid bricks, stones, concrete, or reinforced concrete, with a thickness of at least 22 cm (220 mm) and capable of supporting more than 1.5 tons of weight. Avoid mounting on steel sheets, frames, or walls made of hollow or perforated bricks.
Usage
Before use, check that all connecting screws are tightened properly. Ensure that the bracket parts and the bracket itself do not show any cracks. Do not overload the bracket, lift people or animals, and avoid standing under the pulley to prevent accidents. Only electric hoists are permitted for use with this bracket.
