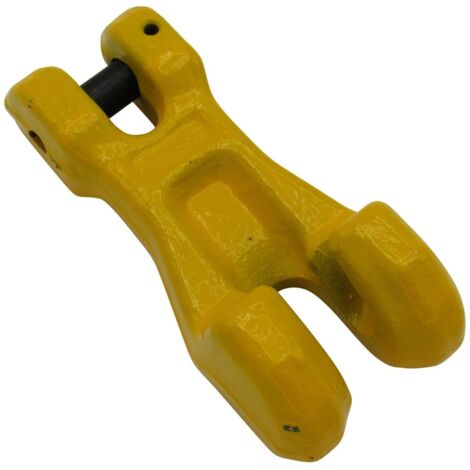

Clevis Shortening Clutch Grade 80 22MM (G80 15 Ton Lifting Gear 15T)

Name: Clevis Shortening Clutch Grade 80 22MM (G80 15 Ton Lifting Gear 15T)
Brand: SECUREFIX DIRECT
SKU: SFYASCSC22
Price: 60.45 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Clevis Shortening Clutch Grade 80 is a high-quality lifting gear designed for use in the lifting gear industry, particularly with chain slings. This clutch allows for the shortening of the chain length in use, providing a secure hold by accommodating a whole link of chain, unlike traditional grab hooks.

Technical specifications

Suits Chain Size: 22MM

Material: Grade 80 (G80)

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Product Codes and Specifications:

SFYASCSC07 - SWL: 2 Tonne, A: 9 MM, B: 100 MM, C: 10.5 MM, D: 9.5 MM, E: 20 MM, F: 74 MM, G: 9 MM

SFYASCSC10 - SWL: 3.15 Tonne, A: 12.5 MM, B: 137 MM, C: 12 MM, D: 12 MM, E: 23 MM, F: 99 MM, G: 13 MM

SFYASCSC13 - SWL: 5.3 Tonne, A: 16 MM, B: 180 MM, C: 15 MM, D: 15.5 MM, E: 32 MM, F: 129 MM, G: 16 MM

SFYASCSC16 - SWL: 8 Tonne, A: 20 MM, B: 220 MM, C: 21 MM, D: 19.5 MM, E: 39 MM, F: 160 MM, G: 19.5 MM

SFYASCSC22 - SWL: 15 Tonne, A: 24 MM, B: 295 MM, C: 29.5 MM, D: 26.5 MM, E: 47 MM, F: 210 MM, G: 28 MM

Usage

This shortening clutch is primarily used in conjunction with chain slings to facilitate lifting operations. By attaching a link of chain to the shortening clutch, users can effectively shorten the length of chain in use, enhancing the security and stability of the load being lifted.

Other information

*Test Certificate will be supplied via email.*

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
NF certification
NF220
Warranty
1 year(s)
Pcs per pack
1
Material
Two-material
Weight
100 g
ManoMano Reference
ME27139311
MMID
957920694790
Product code
SFYASCSC22
EAN
0600988486263
