Clevis Shortening Clutch Grade 80 7MM (G80 2 Ton Lifting Gear 2T)

Name: Clevis Shortening Clutch Grade 80 7MM (G80 2 Ton Lifting Gear 2T)
Brand: SECUREFIX DIRECT
SKU: SFYASCSC07
Price: 9.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

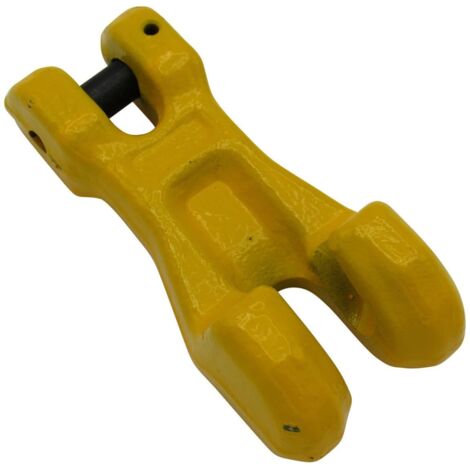

Clevis Shortening Clutch Grade 80 is a high-quality lifting gear designed for use in the lifting gear industry, particularly with chain slings. This product allows for the shortening of chain length by attaching a link of chain to the shortening clutch, providing a secure hold unlike traditional grab hooks.

Technical specifications

Chain Size: 7MM

Material: Grade 80 (G80)

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Product Codes and Specifications:

SFYASCSC07: SWL 2T, A 9MM, B 100MM, C 10.5MM, D 9.5MM, E 20MM, F 74MM, G 9MM

SFYASCSC10: SWL 3.15T, A 12.5MM, B 137MM, C 12MM, D 12MM, E 23MM, F 99MM, G 13MM

SFYASCSC13: SWL 5.3T, A 16MM, B 180MM, C 15MM, D 15.5MM, E 32MM, F 129MM, G 16MM

SFYASCSC16: SWL 8T, A 20MM, B 220MM, C 21MM, D 19.5MM, E 39MM, F 160MM, G 19.5MM

SFYASCSC22: SWL 15T, A 24MM, B 295MM, C 29.5MM, D 26.5MM, E 47MM, F 210MM, G 28MM

Compatibility and accessories

Used in conjunction with chain slings

Other information

Test certificate will be supplied via email

Free delivery available

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Material
Two-material
Warranty
1 year(s)
NF certification
NF220
