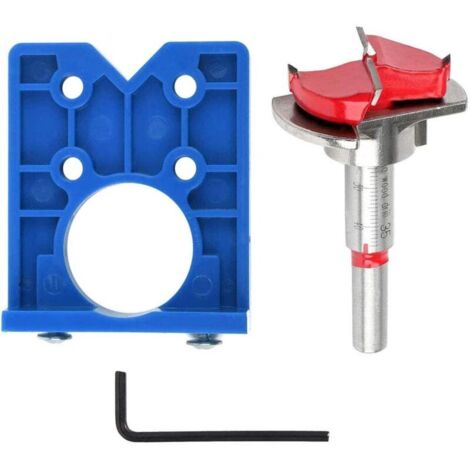

Concealed hinge template, 35mm hinge hole cutter with drill locator for wooden furniture cabinet hinges and mounting plates

Description 【Drilling Guide Set】 The template can be adjusted for door edge changes and is good for removing debris. The tool set is ideal for drilling concealed hinges and door locks. 【High Quality】 The hinge hole drill bit adopts a super-hard alloy which makes the cut cleaner, the removal of debris unimpeded with exceptional boring capacity and excellent boring performance. 【Concealed Hinge Drilling Jig】 Includes a "V" locator which works from a center reference line and quickly locates the center drilling points for all brands of hinges and mounting plates. 【Design】 The head offers visibility and stability during operation. The central spur of each drill bit ensures precise drilling and prevents wobbling and oscillation during operation, creating perfectly round and precise holes with the central spur design. 【Wide Application】 Suitable for pillar drills, pistol drills, bench drills, vertical drills, portable electric drills, stand-mounted motor drills, and moving band-type magnetic drills, etc. The drill guide is widely used, making it suitable for woodworking hobbyists or professional engineers. Features: 1. The concealed hinge drilling jig is made of high-impact polycarbonate and is ideal for drilling. 2. Forstner drill bit for clean holes in soft and hard wood. 3. Offers excellent visibility and precision cutting. 4. Ideal for cabinet hinges and mounting plates. 5. Suitable for pillar drills, pistol drills, bench drills, vertical drills, handheld electric drills, stand-mounted motor drills, and moving band-type magnetic drills. How to use: 1. Determine the position of the hinge cup, with the short plate facing upwards, the screw fixed to the edge of the wood plate, and drill the hole for the hinge cup. 2. Draw the corresponding center line on the other board, with the short board facing down, aligning the center line with the inverted triangle, and drill the hinge seat positioning hole. 3. Install the hinges. 4. Set the maximum hole opener distance to 0-30mm. Please note! Keep your hands and body away from sharp edges and moving parts. Ensure the hole locator is securely attached before operation. To improve the performance of the hole locator, you can regularly lubricate the tool with grease. Package includes: 1 x 35mm hinge drilling template, 1 x Forstner bit set, 1 x hex key
