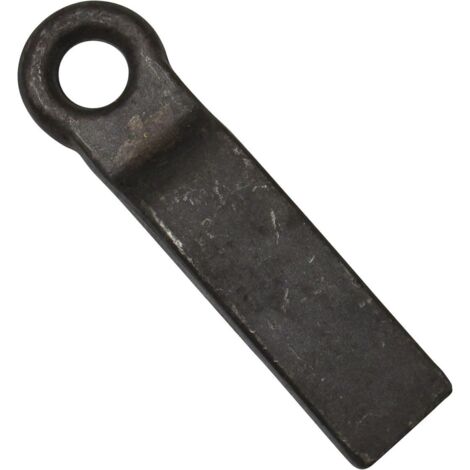

Cranked Trailer Hitch Eye 16" EN16T - (35 Ton Weld On High Tensile Towing Ring)

Name: Cranked Trailer Hitch Eye 16" EN16T - (35 Ton Weld On High Tensile Towing Ring)
Brand: SECUREFIX DIRECT
SKU: SFAG0103B
Price: 32.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Cranked Trailer Hitch Eye 16' EN16T is designed for high tensile towing applications, made from high tensile steel for enhanced durability and strength. This product is specifically made to be welded onto trailers, providing a reliable attachment point for towing. The EN16T version offers a higher grade of steel compared to mild steel options, resulting in a greater maximum load capacity.

Technical specifications

Material: High Tensile Steel

Product Code: SFAG0103B

Dimensions:

A (MM): 400

B (MM): 30.5

C (MM): 92

D (MM): 112.5

E (MM): 51

F (MM): 64

Max Breaking Load On Eye: 35 Ton

Installation

Welding should be performed by a qualified professional. General guidelines include preheating the area, avoiding tack welding, and refraining from short thin runs to ensure a secure installation.

Usage

This trailer hitch eye is designed for use with towing applications, providing a robust attachment point. Additionally, towing eye bushes are available to fit directly into the eye, allowing for the use of a pin instead of a tow ball.
