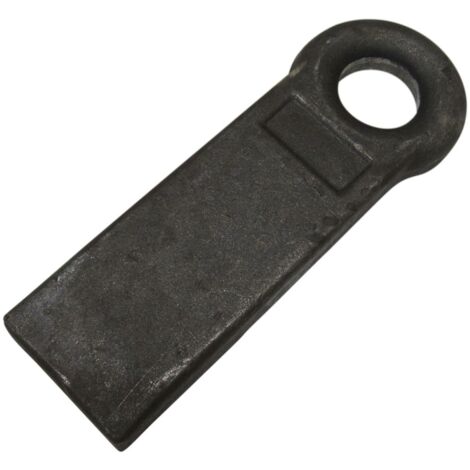

Straight Trailer Hitch Eye 16" EN16T (35 Ton Weld On High Tensile Towing Ring)

Name: Straight Trailer Hitch Eye 16" EN16T (35 Ton Weld On High Tensile Towing Ring)
Brand: SECUREFIX DIRECT
SKU: SFAG0101B
Price: 32.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Our Straight Trailer Hitch Eye is designed for high tensile towing applications, made from high tensile steel for enhanced durability and strength. This hitch eye is specifically made to be welded onto trailers, providing a reliable attachment point for towing. The EN16T version offers a higher grade of steel compared to mild steel options, allowing for a greater maximum load capacity.

Technical specifications

Material: High Tensile Steel

Product Code: SFAG0101B

Dimensions:

A: 407 mm

B: 31.5 mm

C: 91 mm

D: 112.5 mm

E: 50.5 mm

Max Breaking Load On Eye: 35 tons

Installation

Welding should be performed by a qualified person.

Always preheat before welding.

Avoid tack welding or short thin runs during installation.

Usage

Designed for towing applications on trailers.

Can accommodate towing eye bushes that allow the use of a pin instead of a tow ball.

Other information

Shotblasted and finished in self-colour.

Various trailer hitch eyes and a wide range of agricultural products are available.

Features

Brand
SECUREFIX DIRECT
Length
40.5 cm
Height
3.15 cm
Weight
100 g
Material
Steel
