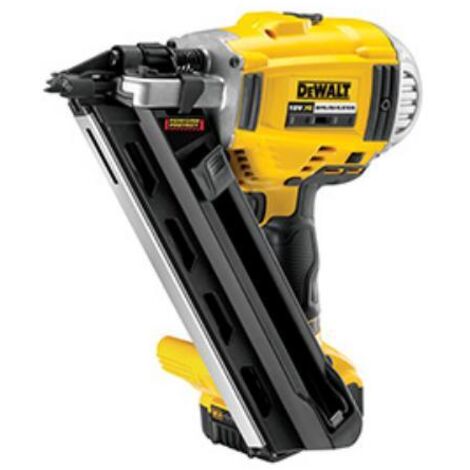

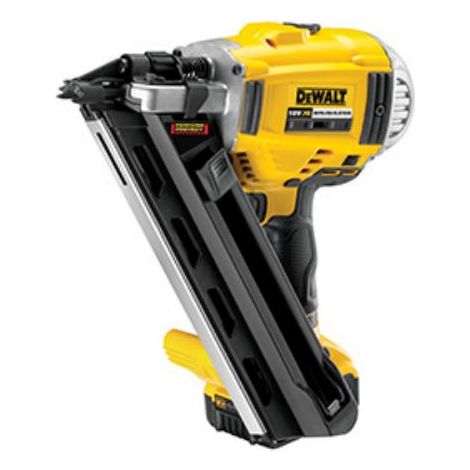

DeWalt DCN692N 18V XR Brushless Framing Nailer 90MM Body Only - 1st Fix

Reference: ME536755

Out of stock

View full description


- 5 %
  • Free delivery (postcode specific)

Sold by: Toolden

DeWalt DCN692N 18V XR Brushless Framing Nailer 90MM Body Only - 1st Fix


DeWalt DCN692N 18V XR Brushless 1st Fix Framing Nailer 90MM Body Only

The DeWalt DCN692N XR Framing nail-gun is the complete gun from DeWalt to ease through most nailing jobs. It offers two-speed options for firing a wide range of nail sizes, much less recoil which makes a big difference when firing short length nails, the magazine is angled at 30 - 34 degrees to deal with most clipped head and off centre round head paper tape or wire weld collated nails. It runs well off the DCB182 4.0Ah but even better off of the DCB184 5.0Ah battery, coupled with the brushless motor the DeWalt DCN692N XR Framing Nailer is a tool kit essential.

DCN692N Features

  • Dry fire lockout ensures that the tool is protected from firing without nails in the magazine
  • Cordless design so no hanging leads to deal with
  • User can engage contact trip lock-off and prevent accidental dis-charge of fastener
  • Two speeds or power levels which optimises the nailer for firing all lengths of nails.
  • The sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed
  • Mechanical rather than gas operation offers consistent performance at temperature between -20 and 50 degrees celsius and minimal cleaning/service requirements
  • Class leading vibration and sound figures, offer fantastic user protection
  • Reversible belt/rafter hook provides increased portability and versatility on the job-site
  • Depths can be easily adjusted using the thumb wheel depth adjuster Increased visibility and durability along with protection for work-surface from the non-mar contact-trip
  • Ergonomic tool design allows the nailer to fit easily between a 400mm centre stud
  • Gas free operation offers a significant saving in running costs
  • Tool free stall/jam clearance minimises user down time

DCN692N Specification

  • Compatible Battery Chemistry: XR Li-Ion
  • Voltage: 18v
  • Nail Diameter: 2.8 - 3.3 mm
  • Magazine angle: 30 - 34 °
  • Magazine loading: Rear - load
  • Nail Length: 50 - 90 mm
  • Magazine capacity: Up to 55 Nails
  • Trigger Type: Bump & Sequential
  • Length: 345 mm
  • Width: 125 mm
  • Height: 338 mm
  • Weight: 4.1 kg
  • Nailer Operating Mode: Selective
  • Integrated Belt Hook: Yes
  • Jam Clearing: Yes
  • Impact energy: 105 J
  • Temperature Range: -20 to 50°C
  • Fault indicator: Yes

What is included:

  • 1 x DeWalt DCN692N 18V XR Brushless 1st Fix Framing Nailer 90MM Body Only
  • Carry Case not included
  • Brand DEWALT
  • Use Nailer
  • Power supply Wireless
  • Use Frame
  • Tension 18 V
  • Warranty 1 year
  • ManoMano Reference ME536755
