1/5

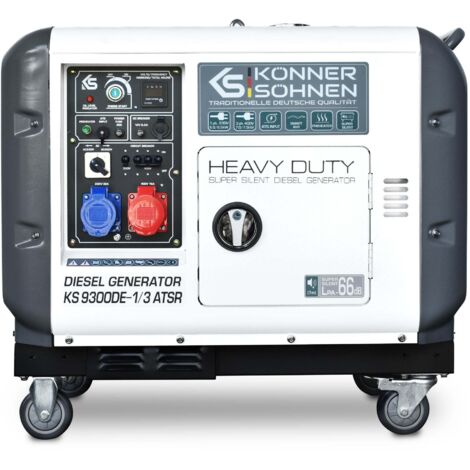

Generator diesel KS 9300DE-1/3 ATSR Könner & Söhnen, 400 V / 230 V, VTS phase switching system, 7500 W / 6000 W

Name: Generator diesel KS 9300DE-1/3 ATSR Könner & Söhnen, 400 V / 230 V, VTS phase switching system, 7500 W / 6000 W
Brand: KÖNNER & SÖHNEN
SKU: 69238
Price: 1699 GBP
Availability: InStock
Rating: 5 (3 reviews)

Sold by Könner & Söhnen

Product information

Description

General description

The Könner & Söhnen KS 9300DE-1/3 ATSR is a robust diesel generator designed for reliable power supply in various applications, including private homes, farms, warehouses, and educational institutions. It features a unique VTS phase switching system, allowing seamless operation in both single-phase (230V) and three-phase (400V) modes with minimal power loss. This model is equipped with a licensed DIMAX Int. GmbH engine that complies with the EURO V emission standard, providing efficient and environmentally friendly operation. The generator supports an Automatic Transfer Switch (ATS) connection, enabling automatic start during power outages and maintaining battery charge while on standby. It also includes a preheater for easy cold-weather starts. The soundproof anti-vandal enclosure protects the generator from tampering and ensures efficient heat dissipation, thereby extending the engine's service life. The ergonomic control panel features an LED display that shows voltage, frequency, and operating hours, along with overload and short circuit protection, and a low oil level indicator. A transport kit with four wheels and handles provides mobility.

Technical specifications

Voltage: 230/400 V

Max/Nominal Power (230V): 6.5/6.0 kW

Max/Nominal Power (400V): 7.5/7.0 kW

Frequency: 50 Hz

Current (Max.): 28.26 A (230V) / 13.54 A (400V)

Engine Model: KS 520HD-V

Engine Power: 18.0 hp / 13.24 kW

Fuel Tank Volume: 15 L

Crankcase Volume: 1.65 L

Engine Displacement: 498 cm³

Power Output Controller: Intelligent AVR

Engine Start: Electric

ATS Output: Yes

Protection Class: IP23M

Dimensions (LxWxH): 920 x 580 x 860 mm

Net Weight: 168 kg

Gross Weight: 180 kg

Other information

This product is sold without engine oil and diesel fuel.

Before the first start, ensure to add engine oil (recommended grade: 10W-30 or 10W-40) and use automotive diesel fuel that meets at least EURO V standards.

Features

Brand
KÖNNER & SÖHNEN
Power
7500 W
Origin
Made in Germany
Battery life
8.3 h
Tank capacity
15 l
Fuel
Diesel
Engine capacity
498 cm³
Frequency
50 Hertz
Height
86 cm
IP rating
IP23
Width
58 cm
Length
92 cm
Material
Metal
Number of phase(s)
Single-phase
Number of sockets
2
Weight
168 kg
Presence of ATS (automatic transfer switch)
Yes
Electronic inverter/purger present
Yes
Continuous operating power
7.5 kW
Noise level
66 dB
Engine fuel system
4 stroke
Starting system
Electric
Voltage
230 V
Type of generator
Generator
Volume
15 l
ManoMano Reference
ME67769094
MMID
359372078075
Product code
69238
EAN
4260405365210

Customer reviews

5,0

/ 3 Reviews

Reviews verified by ManoMano

JJérôme

Published on 20/04/2024, France

Very good product, very easy to use, meets my expectations Noisier than I thought compared to other demo views Missing an ordinary 220 Volt socket.

19 people found this helpful
