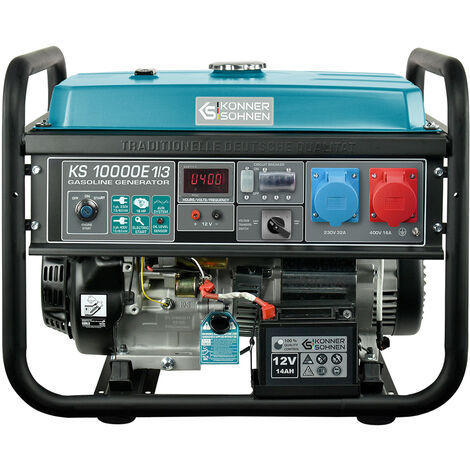

Petrol generator KS 10000E 1/3 8000 W, 230/400 V, VTS Könner & Söhnen

Name: Petrol generator KS 10000E 1/3 8000 W, 230/400 V, VTS Könner & Söhnen
Brand: KÖNNER & SÖHNEN
SKU: KS10000E-1/3
Price: 934 GBP
Availability: InStock
Rating: 5 (1 reviews)

~~£1,399.00~~

Sold by Könner & Söhnen

Product information

Description

General description

The KS 10000E-1/3 petrol outdoor generator by Könner & Söhnen is a powerful and versatile generator designed for both single-phase (230V) and three-phase (400V) applications. It features a unique VTS (voltage transfer switch) phase switching system, allowing seamless operation without power loss. With a maximum power output of 8000 W, this generator is ideal for various uses, including backup power for homes, workshops, and outdoor events.

Technical specifications

Engine model: Könner & Söhnen KS 440

Engine type: Four-stroke, petrol powered, air-cooled

Engine volume: 440 cm³

Engine power: 18.0 HP

Fuel type: Petrol

Fuel tank volume: 25 L

Crankcase volume: 1.2 L

50% power working time: 15 h

Noise level: Lpa/Lwa 72/97 dB

Maximum power (230V): 8.0 kW

Nominal power (230V): 7.5 kW

Maximum power (400V): 8.0 kW

Nominal power (400V): 7.5 kW

Voltage: 230 V / 400 V

Frequency: 50 Hz

Current (max.): 34.78 A (230V) / 14.45 A (400V)

Engine start: Manual/Electric

Sockets: 1x16A/400V, 1x32A/230V, 1x12V DC

Dimensions (L x W x H): 680 x 545 x 550 mm

Weight: 88 kg

Installation

Ensure the generator is placed on a stable surface to prevent sliding.

Connect the generator to the required voltage mode (230V or 400V) using the VTS phase switch.

Follow the manufacturer's guidelines for connecting appliances to the generator sockets.

Usage

Start the generator using the electric or manual start system.

Monitor the LED display for operational metrics such as frequency and voltage.

Utilize the overload circuit breaker and short circuit protection for safety during operation.

Check the fuel level using the built-in fuel level sensor before operation.

Other information

Equipped with a Japanese carburettor for quieter operation and improved fuel efficiency.

Features a reinforced steel frame and double anti-vibration system for durability and reduced noise.

Includes a battery for electric start functionality.

Features

Brand
KÖNNER & SÖHNEN
Power
8000 W
Certification body
CE
Battery life
15 h
Tank capacity
25 l
Fuel
Petrol
Engine capacity
440 cm³
Frequency
50 Hertz
Height
55 cm
IP rating
IP23
Width
54.5 cm
Length
68 cm
Material
Steel
Number of phase(s)
Three-phase
Number of sockets
2
Weight
90 kg
Presence of ATS (automatic transfer switch)
Yes
Electronic inverter/purger present
Yes
Continuous operating power
7.5 kW
Engine fuel system
4 stroke
Starting system
Electric
Voltage
230 V
Type of generator
Generator
ManoMano Reference
ME69021779
MMID
541102516760
Product code
KS10000E-1/3
EAN
4260405361601

Customer reviews

5,0

/ 1 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 28/11/2024, France

Very well made material, consistent with the description. All that's missing is the wheelbarrow kit included for it to be perfect

1 person found this helpful
