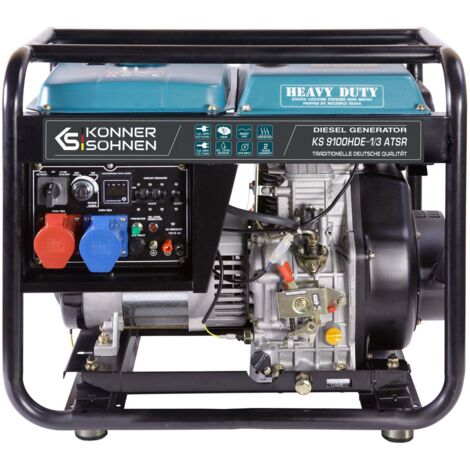

Diesel generator KS 9100HDE-1/3 ATSR Könner & Söhnen,230 V / 400 V, 7500 W, with VTS phase switching system

Name: Diesel generator KS 9100HDE-1/3 ATSR Könner & Söhnen,230 V / 400 V, 7500 W, with VTS phase switching system
Brand: KÖNNER & SÖHNEN
SKU: KS 9100HDE-1/3 ATSR
Price: 1274 GBP
Availability: InStock

~~£1,499.00~~

Sold by Könner & Söhnen

Product information

Description

General description

The KS 9100HDE-1/3 ATSR diesel generator from the HEAVY-DUTY series by the German brand Könner & Söhnen is an ideal solution for backup power supply for small houses, workshops, or as a reliable power source for construction and repair work. This robust generator features a maximum power output of 7500 W (400 V) and 6400 W (230 V), making it versatile for various applications.

Technical specifications

Engine Model: Könner & Söhnen KS 520HD

Engine Type: Four-stroke, diesel-powered, air-cooled

Engine Volume: 498 cm³

Engine Power: 18.0 HP

Fuel Type: Diesel

Fuel Tank Volume: 11 L

Crankcase Volume: 1.65 L

50% Power Working Time: 11 hours

Noise Level (Lpa at 7m / Lwa): 71/96 dB

Max./Nominal Power (400 V): 7.5/7.0 kW

Max./Nominal Power (230 V): 6.4/5.9 kW

Voltage: 400 V/230 V

Frequency: 50 Hz

Current (max.): 27.83 A (230 V) / 13.54 A (400 V)

Engine Start: Manual/Electro

Sockets: 1x16 A/400 V, 1x32 A/230 V, 1x12 V DC

Compatibility and accessories

VTS Phase Switching System: Allows usage with both 230 V single-phase and 400 V three-phase consumers.

ATS Input: Universal 5-pin connector for ATS unit compatibility.

Optional Rubber Mounts: For reduced vibration and quieter operation.

Installation

Reinforced Steel Frame: Provides durability and protection during transportation and use.

Usage

Preheater: Ensures effortless start-up in cold weather conditions.

LED Display: Displays operational details such as hour meter, frequency, and voltage for efficient performance and timely maintenance.

Overload Circuit Breaker: Protects the generator from overloads.

Fuel Level Sensor: Monitors fuel levels for efficient operation.

Low Oil Level Auto Shut-off: Prevents engine damage by stopping the generator when oil levels are low.

Other information

Engine service life of up to 3000 operating hours, verified by multilevel testing and supported by a warranty.

Meets all European quality standards, including the latest EURO V emission standard.

Features

Brand
KÖNNER & SÖHNEN
Power
7500 W
Origin
Made in China
Battery life
11 h
Tank capacity
11 l
Fuel
Diesel
Engine capacity
498 cm³
Frequency
50 Hertz
Height
63 cm
IP rating
IP23
Length
73 cm
Material
Steel
Number of phase(s)
Three-phase
Weight
122 kg
Presence of ATS (automatic transfer switch)
Yes
Electronic inverter/purger present
Yes
Noise level
96 dB
Engine fuel system
4 stroke
Starting system
Electric
Voltage
230 V
Type of generator
Generator
ManoMano Reference
ME15051403
MMID
753755334230
Product code
KS 9100HDE-1/3 ATSR
EAN
4260405362288
