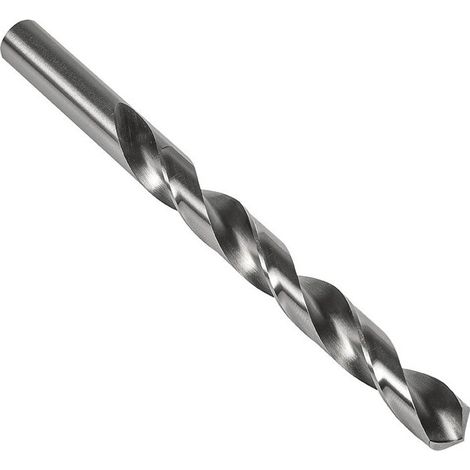

Dormer A1001.6 A100 HSS Jobber Drill Bit 1.60mm OL:43mm WL:20mm DORA100160

Name: Dormer A1001.6 A100 HSS Jobber Drill Bit 1.60mm OL:43mm WL:20mm DORA100160
Brand: DORMER
SKU: A1001.6
Price: 4.41 GBP
Availability: InStock
Rating: 4 (1 reviews)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Trade Hut Direct and 5 other sellers

Product information

Description

General description

This high-speed steel (HSS) twist drill bit is designed for precise drilling in steel and cast iron. It features a 118° point angle and a cross-ground profile, making it ideal for general-purpose drilling in metalworking applications.

Technical specifications

Tip diameter: 1.60 mm

Working length: 20 mm

Overall length: 43 mm

Material: High-Speed Steel (HSS)

Point angle: 118°

Profile: Cross-ground

Shank: Cylindrical

Cutting direction: Right-hand

Nominal diameter tolerance: h8

Maximum feed in steel: 0.02 mm/revolution at up to 800 N

Depth of drilling: 4 mm

Standard compliance: DIN 338

Coating: Dampfanlassbehandlung (damp-annealed treatment)

Compatibility and accessories

Compatible with standard drill chucks for metalworking

Suitable for use with drill presses and handheld drills

Installation

Insert the drill bit into a compatible drill chuck or collet

Ensure the shank is securely tightened to prevent slipping during operation

Set the appropriate drilling speed and feed rate based on the material and diameter

Usage

Use for drilling holes in steel, cast iron, and other metals

Apply steady pressure and avoid excessive force to prolong tool life

Use appropriate cooling or lubrication to reduce heat and improve drilling performance

Other information

Packaged in boxes of 10 pieces

Features

Brand
DORMER
Certification body
DIN
Diameter
1.6 mm
Shank type
Cylindrical
Total length
4.3 cm
Useful lengh
20 mm
Compatible machine
Drill
Suitable for
Metal
Material to Work On
Metal
Material
HSS
Weight
1000 g
Pcs per pack
10
Drill bit type
Multi-purpose
Bit type
Forest
Insertion type
Cylindrical
Sold as a set
Yes
ManoMano Reference
ME1352629
MMID
330361042764
Product code
A1001.6
EAN
7320760000441

Customer reviews

4,0

/ 1 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 18/04/2017, Italy

The product reflects what is described and visible in the photos. The specification regarding the magnetic force (daN or N) is important in the evaluation during the purchase. For the specific use that I made of it, it turned out to be just at the limit of necessity.
