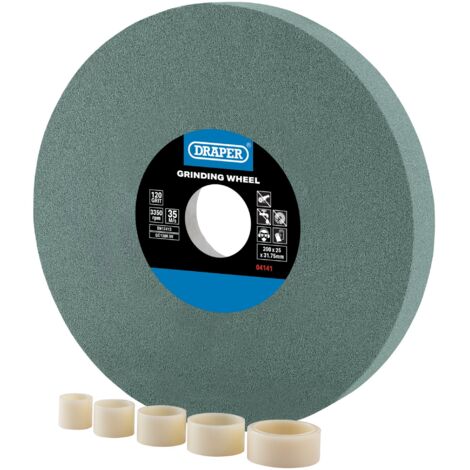

Draper Silicon Carbide Bench Grinding Wheel 200x25mm, 120G, Model S 04141

Name: Draper Silicon Carbide Bench Grinding Wheel 200x25mm, 120G, Model S 04141
Brand: DRAPER
SKU: DRA04141
Price: 22.47 GBP
Availability: InStock

Sold by GravaHaus and 1 other seller

Product information

Description

General description

This high-quality silicon carbide grinding wheel is designed for bench grinding applications. It features an ultra-fine grit suitable for sharpening tungsten carbide tools and grinding non-ferrous metals, including alloys. The wheel is durable and suitable for dry cutting only, providing precise and efficient grinding performance.

Technical specifications

Diameter: 200mm

Thickness: 25mm

Grit: 120 (ultra-fine)

Maximum speed: 3,350 rpm

Surface speed: 35 m/s

Bore diameter: 31.75mm

Weight: approximately 1.5 kg

Compatibility and accessories

Includes reduction rings for fitting bore sizes of 25.30mm, 19.05mm, 15.90mm, and 12.70mm

Suitable for most bench grinders with bore sizes between 12.7mm and 31.75mm

Installation

Ensure the grinder is turned off and unplugged before installation.

Select the appropriate reduction ring to match your grinder's bore size.

Place the wheel onto the spindle, secure it with the appropriate nut, and tighten firmly.

Check that the wheel is properly mounted and spins freely before use.

Usage

Use the wheel for sharpening tungsten carbide tools and grinding non-ferrous metals.

Operate at the recommended maximum speed of 3,350 rpm.

Wear appropriate personal protective equipment, including safety glasses and dust mask.

Use in a dry environment only; do not use with coolant or water.

Other information

Certified according to EN12413 standards and marked with the abrasive wheel marking code GC120K 5V for safety and quality assurance.

Features

Brand
DRAPER
Width
1 cm
Weight
1425 g
Material
Silicon carbide
Bore diameter
31.8 mm
